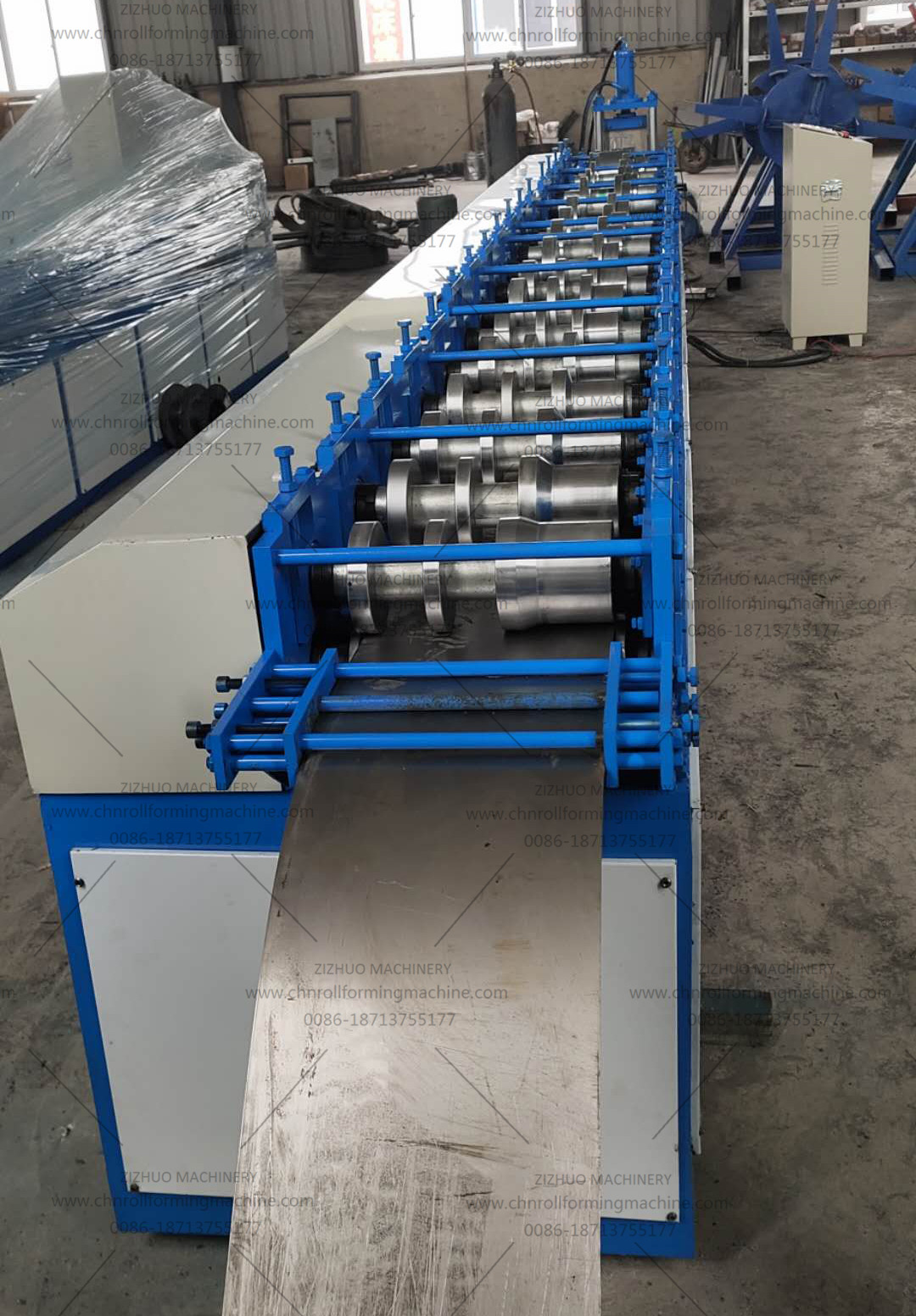

Door frame roll forming machine

Parameter

Specification

1

Processing material

Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.

2

Certification

CE / BV / ISO / SGS

3

Voltage

AC 380V 50Hz 3Phases or as per your request.

4

Power

5.5kw main motor*2 set + 4kw hydraulic station

5

Processing thickness

0.8-1.2mm

6

Feeding width

According to your profile drawings.

7

Output width

According to your profile drawings.

8

Diameter of shaft

Φ50mm (Solid shafts)

9

Roller stations

18 rows of rollers

10

Machine size

About 7.65m * 1.0m * 1.35m

11

Productivity

About 10-12 m/min

12

Roller material

Cr12 mould steel with quenched treatment

13

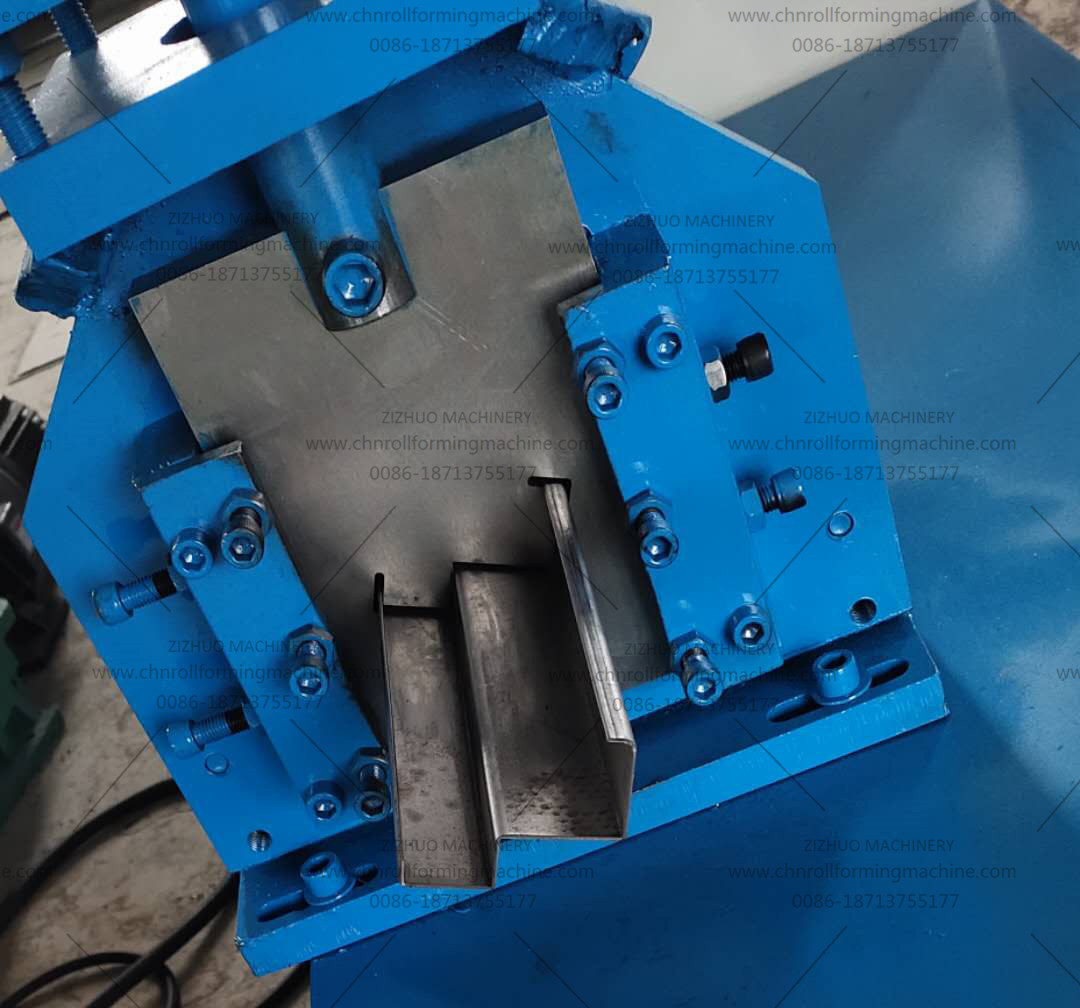

Cutter material

Cr12 mould steel with quenched treatment

14

Control system

Delta PLC (made inTaiwanprovince of China.)

15

Drive method

Chain transmission
