1. Technical parameter and accessories
Parameter | Specification | |
1 | Processing material | GI / PPGI. |
2 | Certification | CE / BV / ISO / SGS |
3 | Voltage | AC 380V 50Hz 3Phases or as per your request. |
4 | Power | 4kw main roll forming core + 4kw hydraulic station |
5 | Processing thickness | 0.8-1.0mm |
6 | Feeding width | 140mm |
7 | Output width | According to your profile drawings. |
8 | Diameter of shaft | Φ40mm (Solid shafts) |
9 | Roller stations | 12 rows of rollers |
10 | Machine size | About 5.25m * 1.0m * 1.2m |
11 | Machine weight | About 2.3 tons |
12 | Productivity | About 10-12 m/min |
13 | Roller material | Cr12 mould steel with quenched treatment |
14 | Cutter material | Cr12 mould steel with quenched treatment |
15 | Screw | Galvanized national standard |
16 | Control system | Delta PLC (made in |
17 | Drive method | Chain transmission |
18 | Electron component | Schneider |
19 | Encoder | Omron |

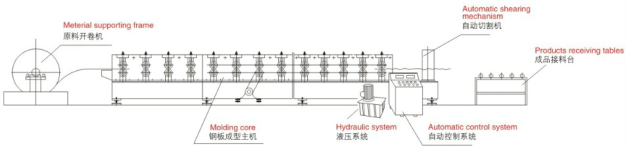

2. Processing flow chart
Decoiler --- guiding system --- roll forming --- cut to length --- product to supporting table
We provide all kinds of ridge cap roll forming machines.
Welcome inquiry.
