Rain gutter roll forming machine specifications

Steel rain gutter roll forming machine

This is automatic steel rain gutter roll forming machine, the whole production line include one set 3 ton manual decoiler, feeding table,

roll forming machine , hydraulic mould cutting and product runout table.

3 ton electric decoiler is automatic working, speed is 8-10m/min, it can match with the punch machine, so can working same time.

It can hold coil for inner diameter is 250mm, outer diameter is 450mm, easy operate.

Roll forming machine automatic working and controled by Delta PLC control system, we also have Mitsibishi PLC for option.

We can customized any power as different request from different country, like Middle East ans Africa 380v 50hz, the US 220v 60hz, 230v 60hz, South America 440v 60hz, 220v 60hz etc.

Touch screen easy operate, customer can setting up any length as they request, and we also provide Chinese, English, Spanish, Russia, France, Arab, Japan, Korea languages as customer’s requirement.

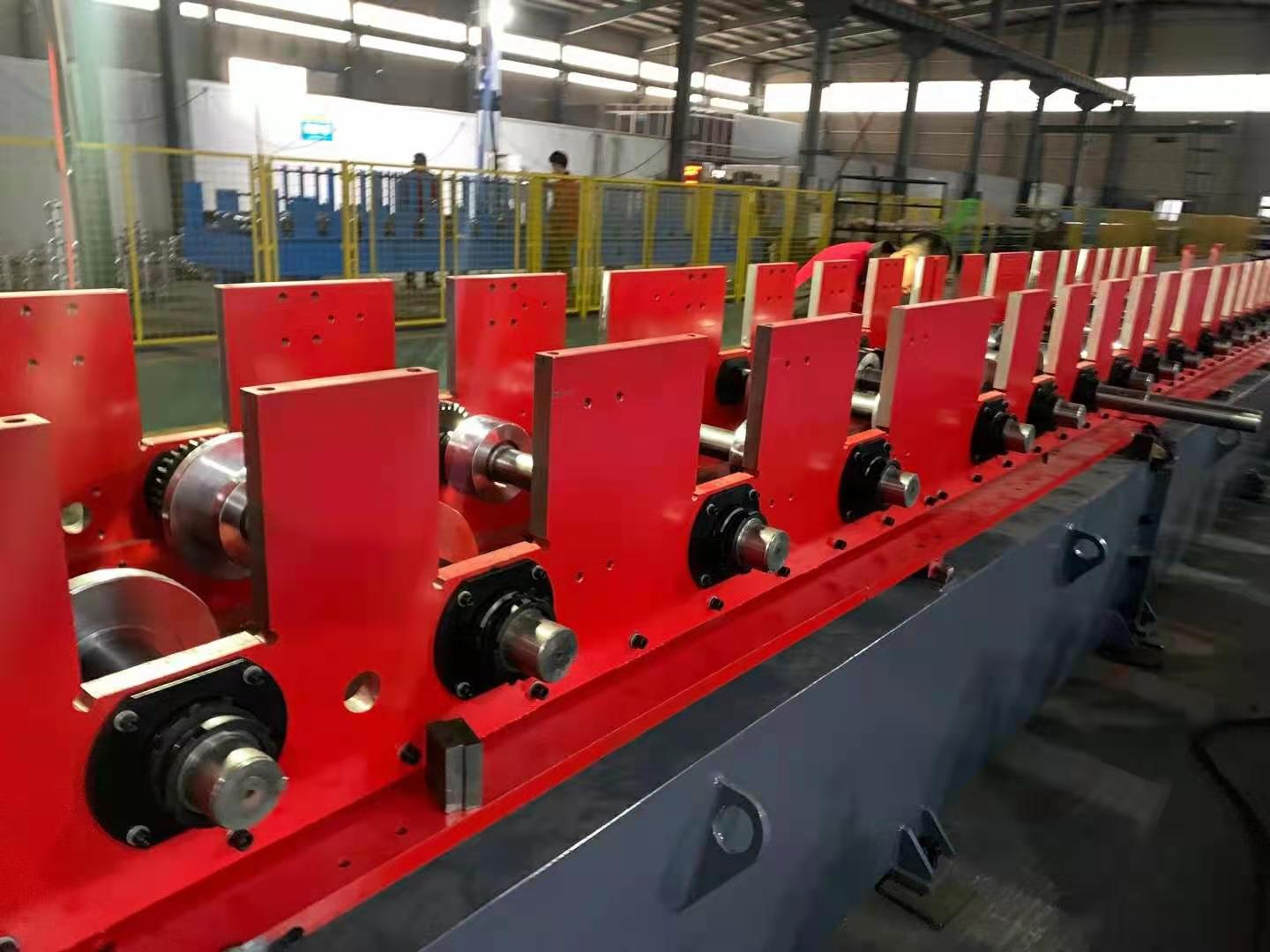

We use 350mm H beam as the structure of the rain gutter roll forming machine, because of pipe need 24 rollers station, so the machine is very long, total length almost 13.5 meters, so the roll forming body can be take apart to two parts, and when customer receive the machines, they can assemble them easily.

The oller and cutter we use Cr12 steel with quenched treatment to make sure the the roller more stronger and not scratch the surface of produce, and the cutter more harder and long lived.

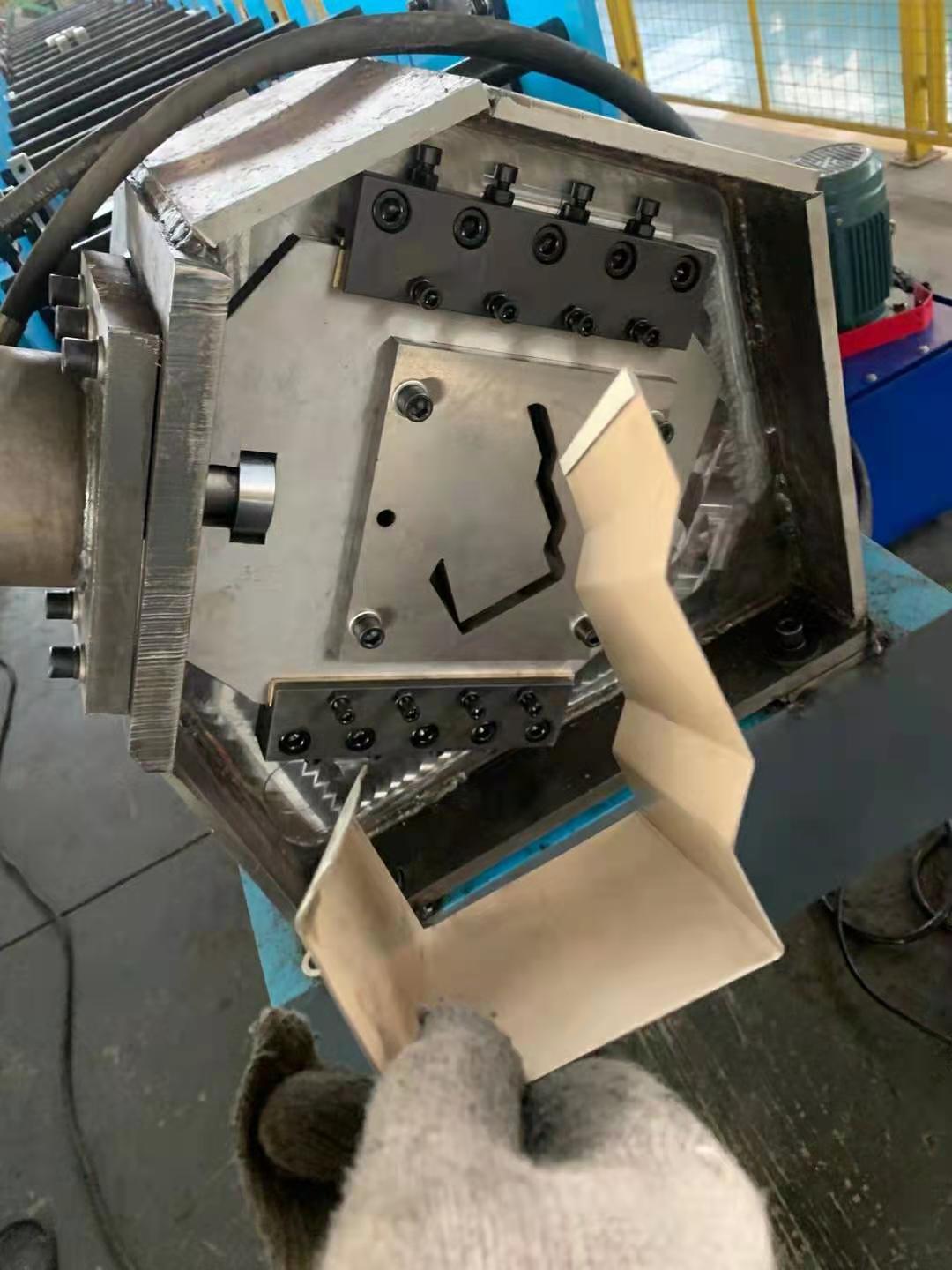

Hydraulic cutter will reduce noise of the machine and it is automatic cut to length as customer's requirement.

We also use good electron component for the machine, like Omron elcoder, schneider electron component etc, in order to make the machine good performance, and reduce the error to the less.

For more details, please contact Jessica Lee for more information.
