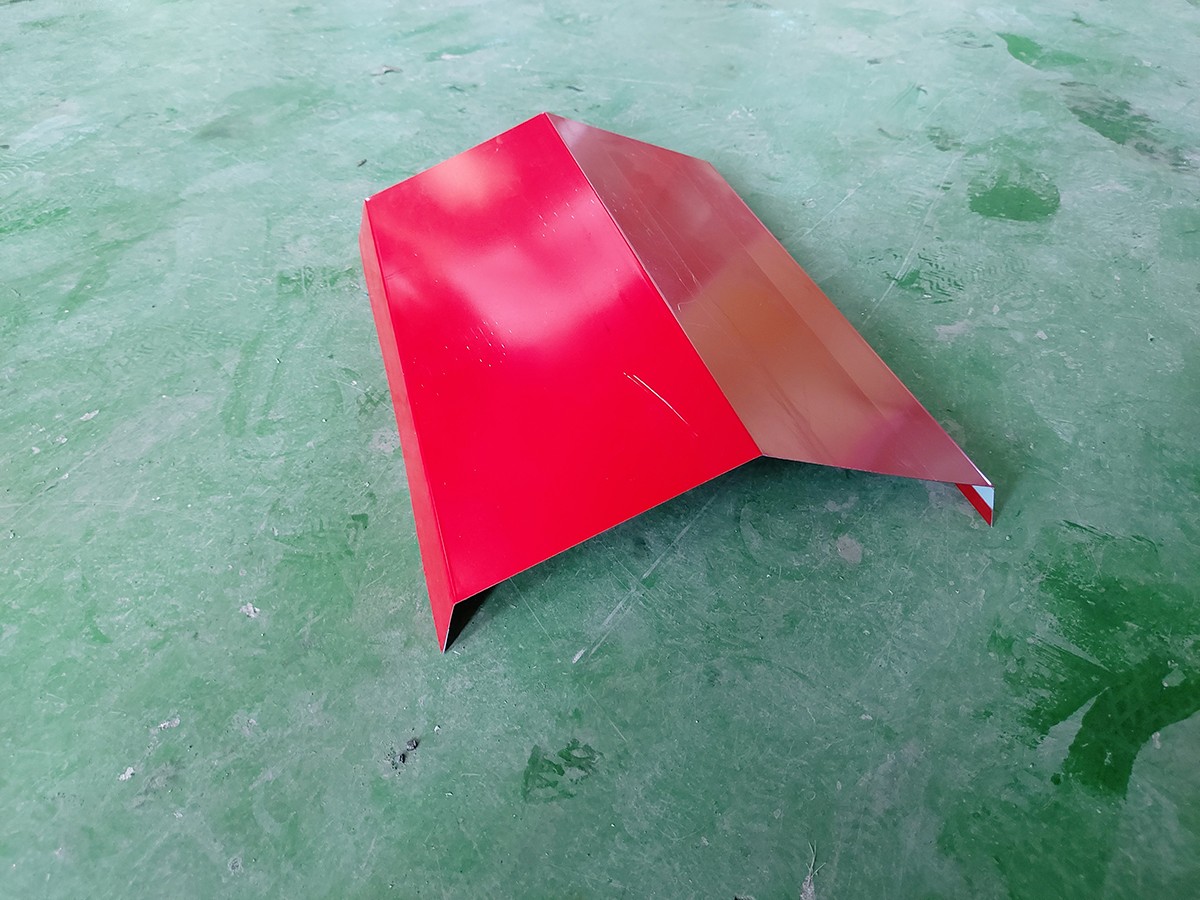

Ridge cap roll forming machine for Ghana

No.

1

Suitable material

Colored Steel plate, aluminum plate, GI, PPGI,

2

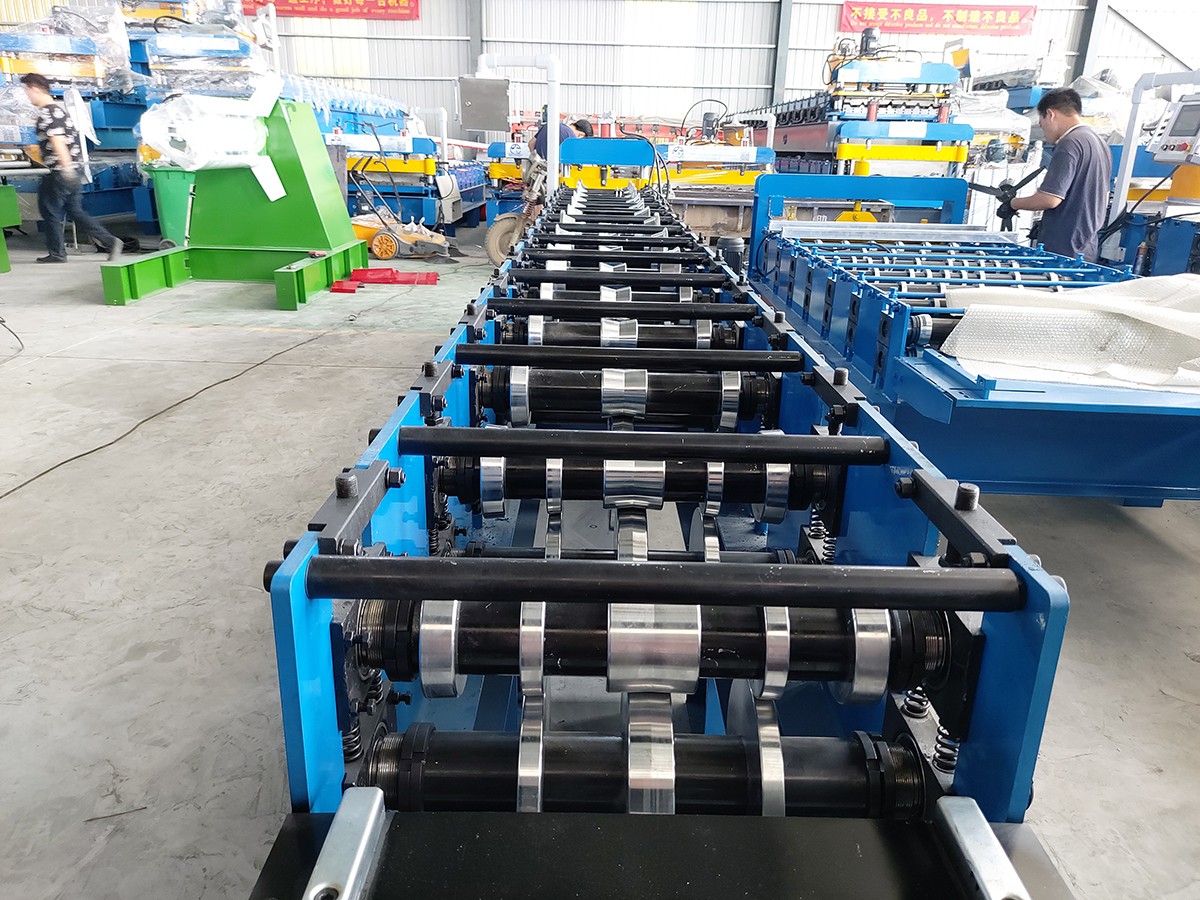

Rows of rollers

14-16 rows

3

Material of roller

high grade 45# steel(plated chrome on surface)

4

Appearance size

7.0*0.8*1.45m

5

Main motor

Main motor 4kw

6

Hydraulic motor

3kw

7

Thickness of raw material

0.3-0.6 mm

8

Productivity

10-12m/min

9

diameter of shaft

￠70mm(Solid shafts)

10

Voltage

380V 50Hz 3phases as per your request.

11

Chain thickness

1.0”

12

Weight

Approx 3.2 T

13

Control system

Delta PLC (made in Taiwan province of China.)

14

Roller material

45 steel

15

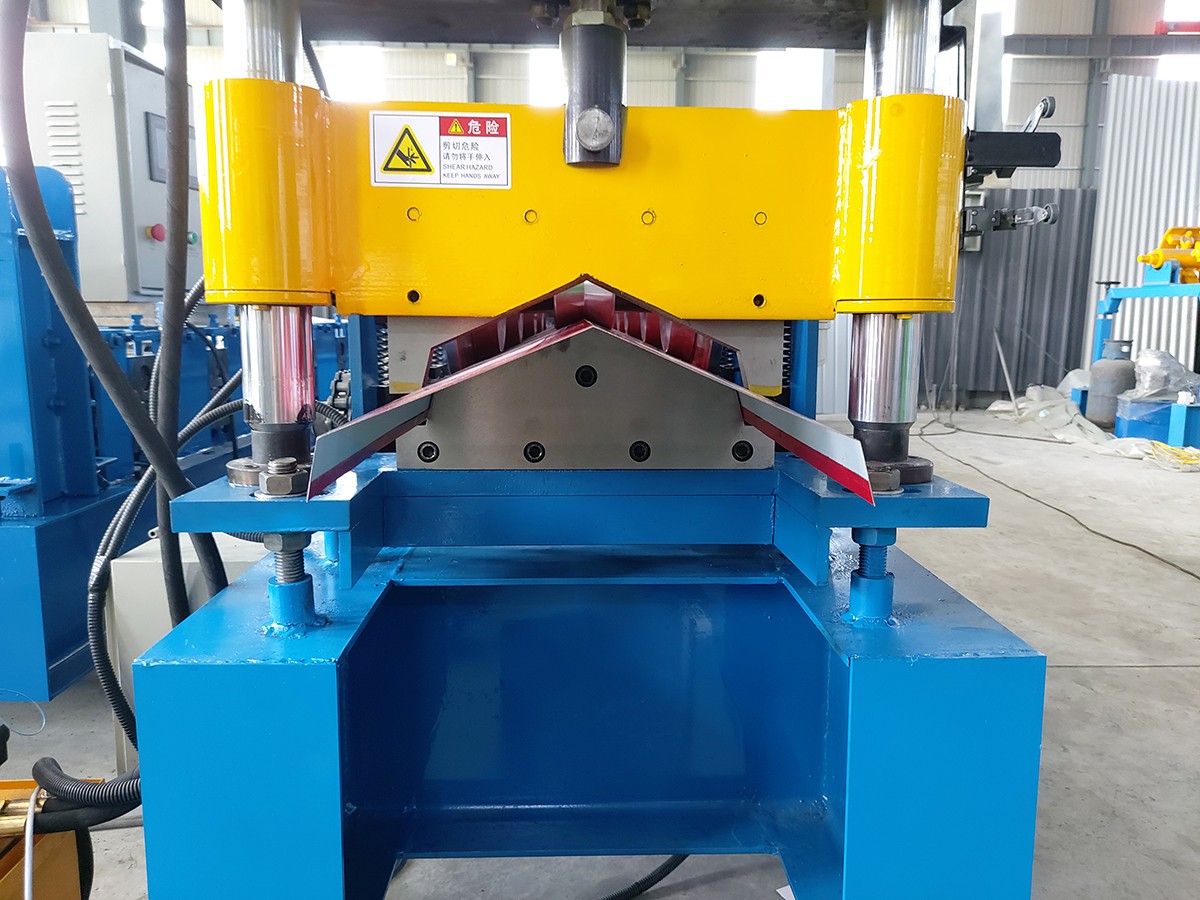

Cutter material

Cr12 mould steel with quenched treatment
