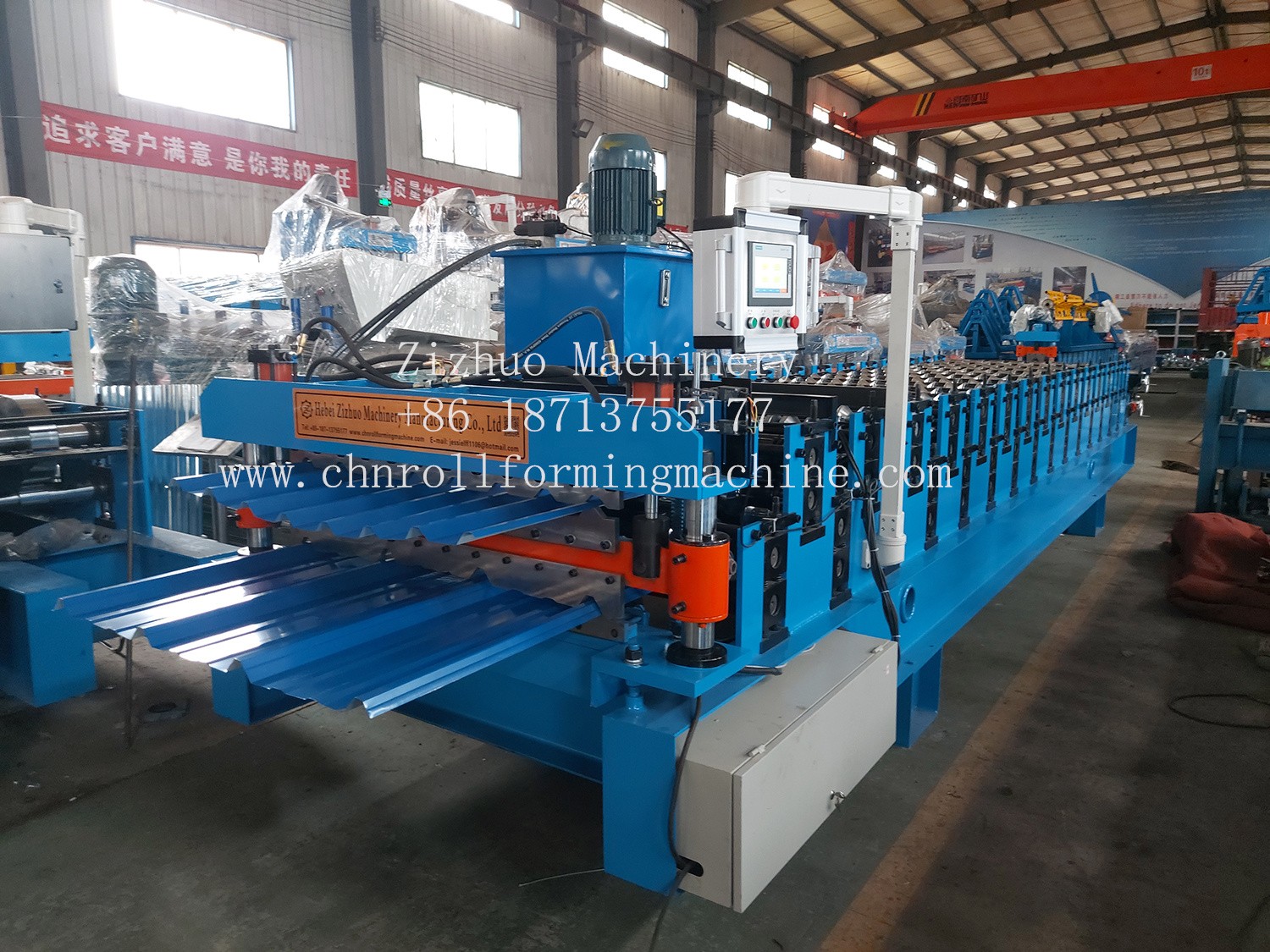

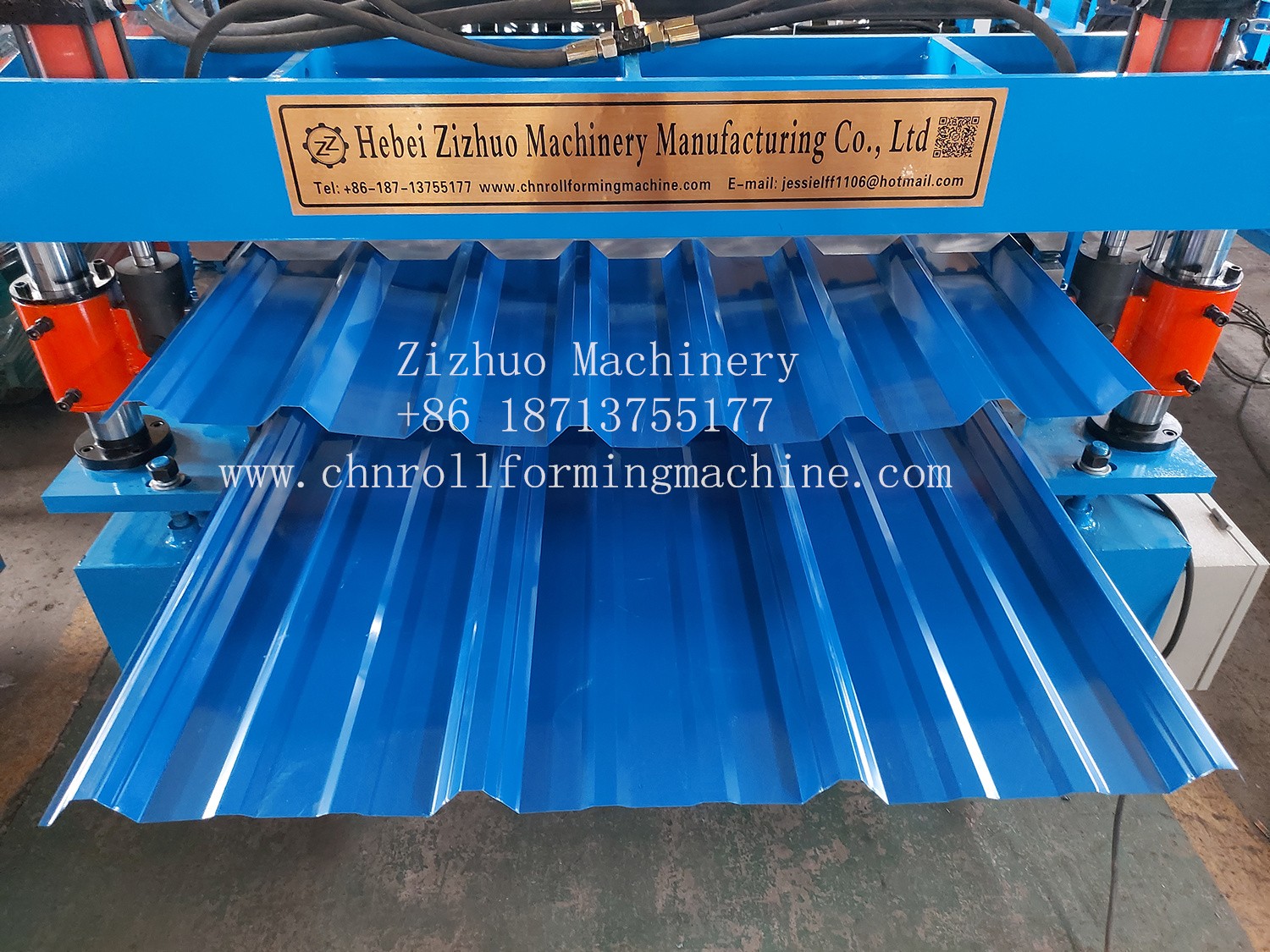

Double layer corrugated and IBR roofing sheet roll forming machine for Colombia customer.
Technical parameters:
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, galvanized steel | |
Thickness(mm) | 0.3-0.7mm | Test material standard 0.4mm | ||
Yield strength (Mpa) | ≤300mm | |||
Width (mm) | About 1220mm | |||
2 | Forming speed | Roofing sheet 20 m/min | Not include cutting time | |
3 | Motor of forming system (kw) | 5.5kw | Depends on final design | |
4 | Hydraulic station power(kw) | 4kw | Depends on final design | |
5 | Voltage requirements | AC220V, 60Hz, 3phase | According to customer’s request | |
6 | Shafts | 70mm | Solid bearing steel | |

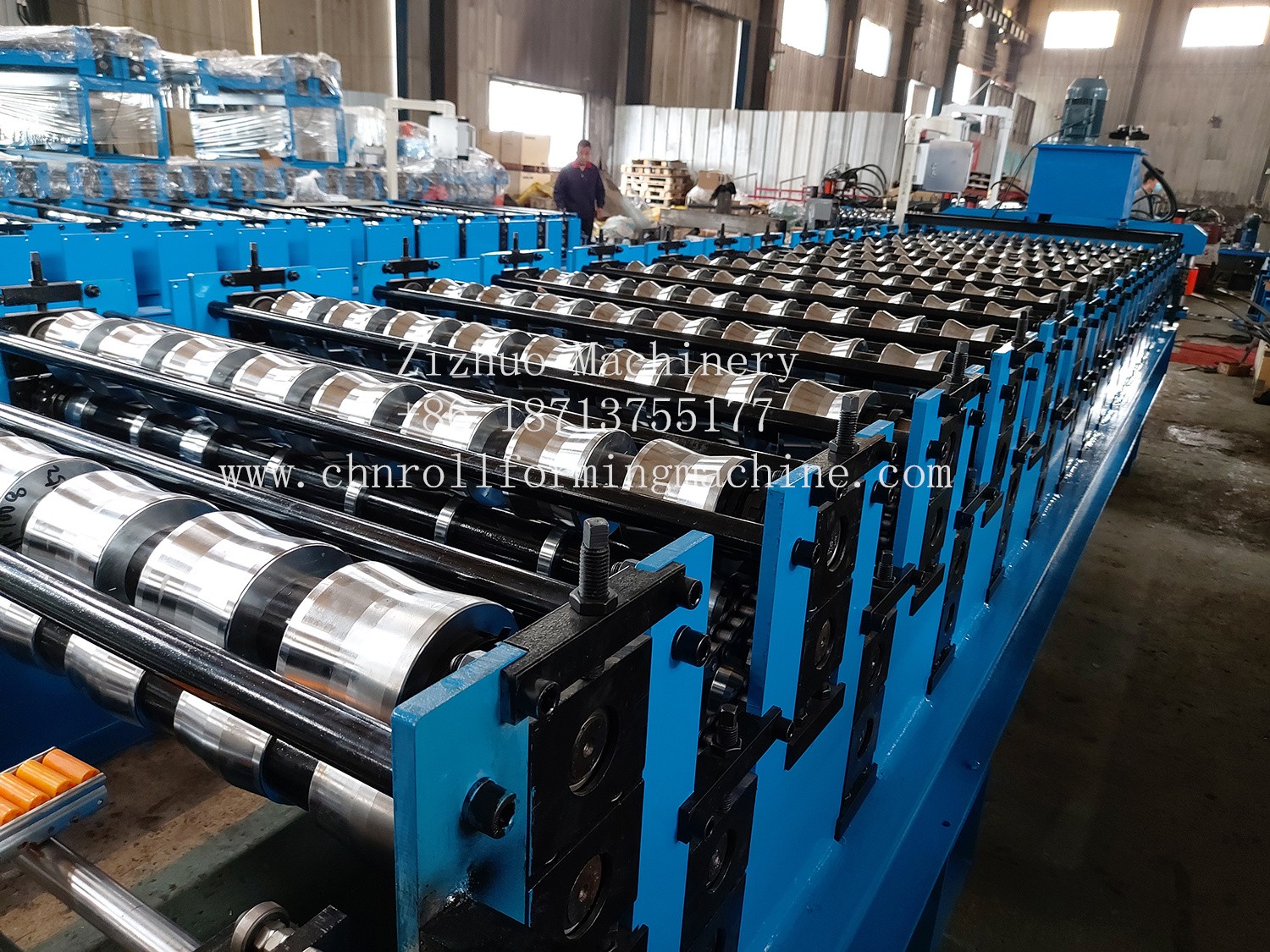

7 | Roller station | 15-18 steps | ||
8 | PLC control system | Delta | Touch screen | |
9 | Transducer | Delta | ||
Process Flow Chart
Decoiler --- guiding system --- roll forming --- cut to length --- product to supporting table
