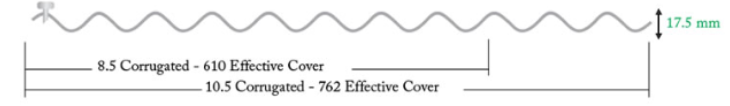

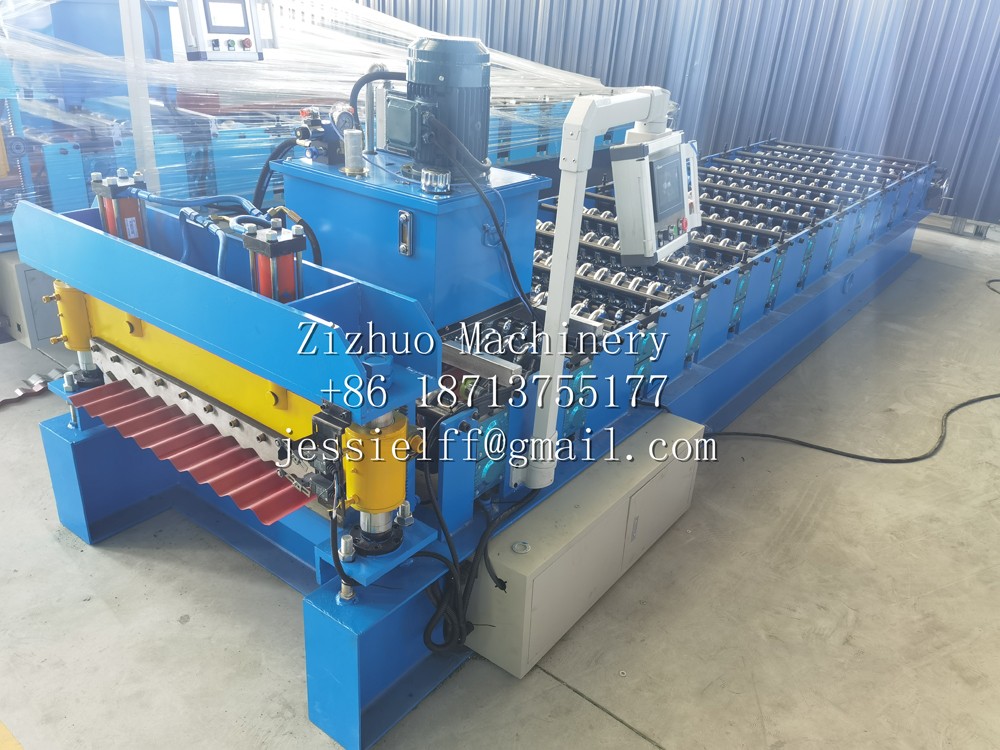

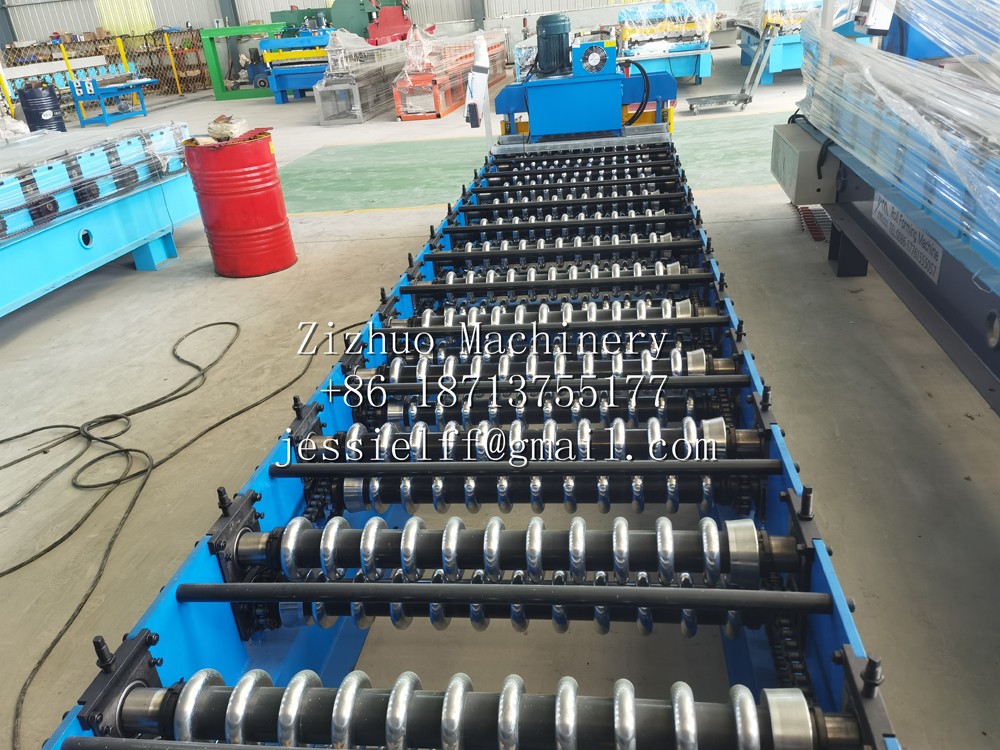

Corrugated roofing sheet roll forming machine for Africa market
Technical parameters:
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, galvanized steel | |
Thickness(mm) | 0.3-0.7mm | Test material standard 0.4mm | ||
Yield strength (Mpa) | ≤300mm | |||
Width (mm) | About 925mm | |||
2 | Forming speed | Roofing sheet 12-18 m/min | Not include cutting time | |
3 | Motor of forming system (kw) | 4kw | ||
4 | Hydraulic station power(kw) | 4kw | ||
5 | Voltage requirements | AC380V, 50Hz, 3phase | According to customer’s request | |
6 | Shafts | 70mm | Solid bearing steel | |
7 | Roller station | 13 steps | #45 steel with 58-62 degree heat treatment | |
8 | PLC control system | Delta | Touch screen | |
9 | Machine weight | Around 4.2 ton | ||
10 | Size | 7.0*1.35*1.58m | ||
Welcome inquiry
