IBR roofing sheet roll forming machine for Zimbabwe customer
This IBR roofing sheet forming machine very popular for South Africa, Zimbabwe, Botswana market.
It suit for 925mm width coils, thickness range 0.25-0.7mm
Technical parameters:
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, galvanized steel | |
Thickness(mm) | 0.3-0.7mm | Test material standard 0.4mm | ||
Yield strength (Mpa) | ≤300mm | |||
Width (mm) | About 925mm | |||
2 | Forming speed | Roofing sheet 12-18 m/min | Not include cutting time | |
3 | Motor of forming system (kw) | 4kw | ||
4 | Hydraulic station power(kw) | 4kw | ||
5 | Voltage requirements | AC380V, 50Hz, 3phase | According to customer’s request | |
6 | Shafts | 70mm | Solid bearing steel | |
7 | Roller station | 16 steps | #45 steel with 58-62 degree heat treatment | |
8 | PLC control system | Delta | Touch screen | |
9 | Machine weight | Around 4.8 ton | ||
10 | Size | 7.6*1.35*1.58m | ||

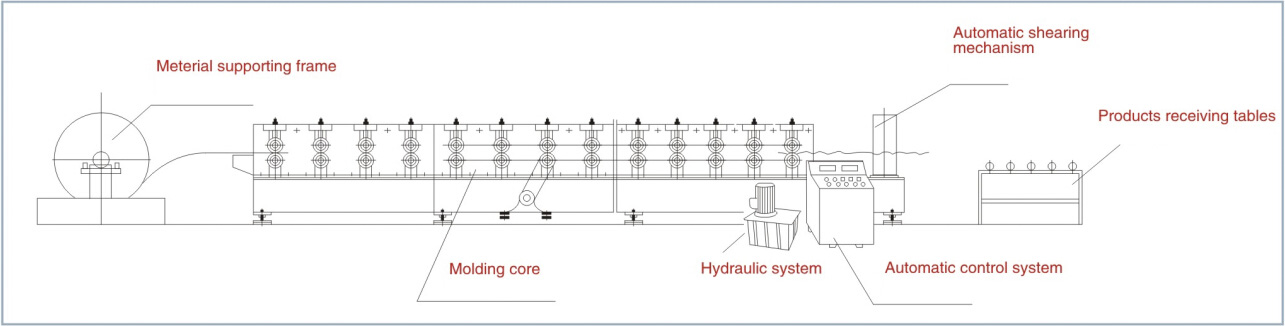

Process Flow Chart
Decoiler --- guiding system --- roll forming --- cut to length --- product to supporting table

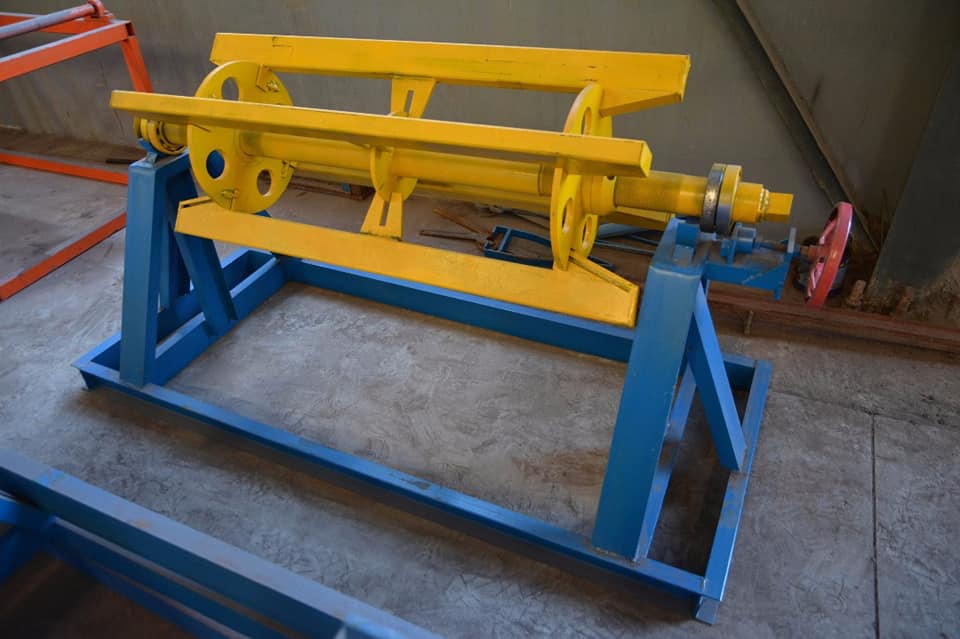

Each set roll forming machine will include one set manual decoiler for free
Welcome inquiry
