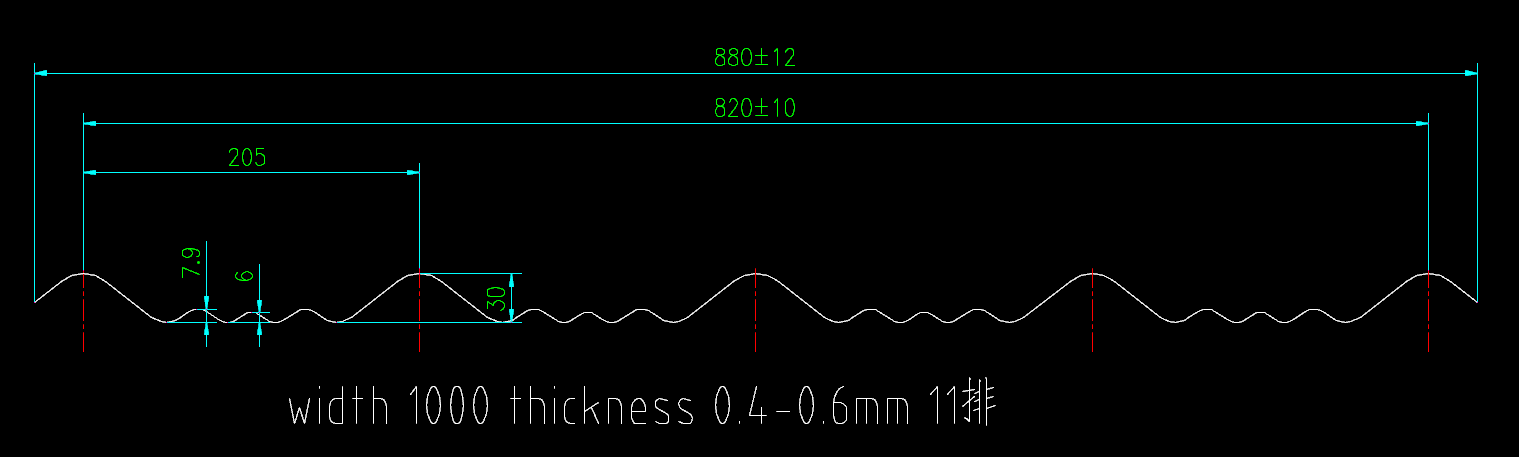

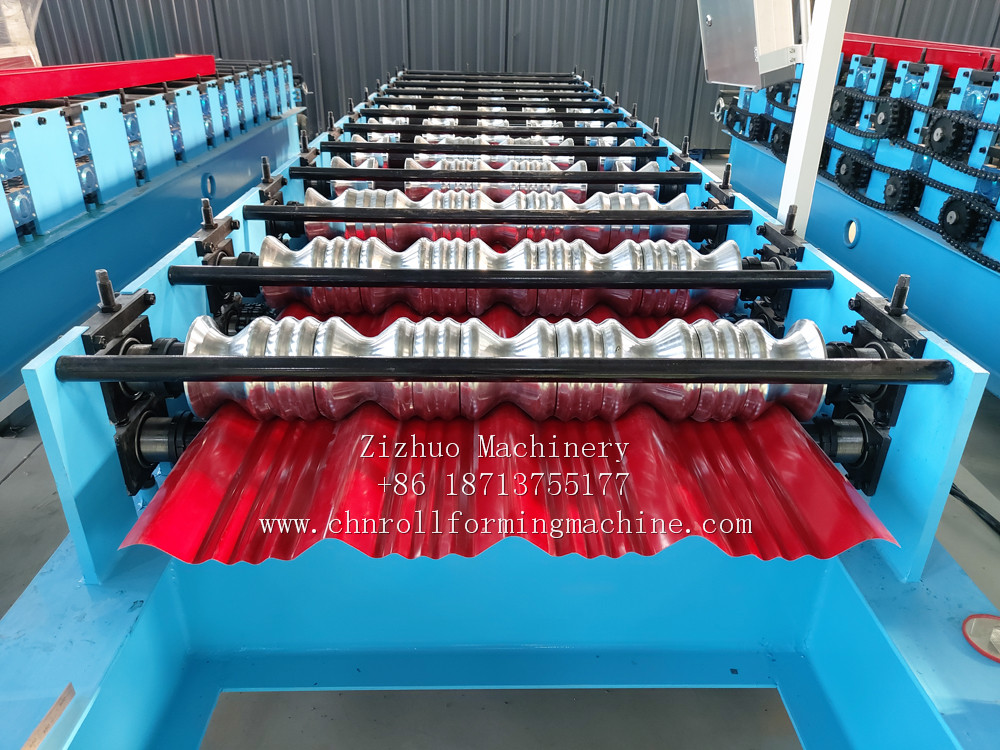

Bolivia type roof tile roll forming machine
This is very popular type roof tile, it is popular in Bolivia, Indonesia, Africa countries like Nigeria,
Zambia, Zimbabwe, Cameroon, etc
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, galvanized steel | |
Thickness(mm) | 0.28-0.6mm | Test material standard 0.4mm | ||
Yield strength (Mpa) | ≤300mm | |||
Width (mm) | About 1000mm | |||
2 | Forming speed | Roofing sheet 2-4 m/min | Not include cutting time | |
3 | Motor of forming system (kw) | 5.5kw | Depends on final design | |
4 | Hydraulic station power(kw) | 4kw | Depends on final design | |
5 | Voltage requirements | AC380V, 50Hz, 3phase | According to customer’s request | |
6 | Shafts | 70mm | Solid bearing steel | |
7 | Roller station | 11 steps | ||
8 | PLC control system | Delta | Touch screen | |
9 | Transducer | Delta | ||
10 | Roller material | #45 steel | 58-62 degree heat treatment | |
11 | Machine weight | About 5.5 ton | ||

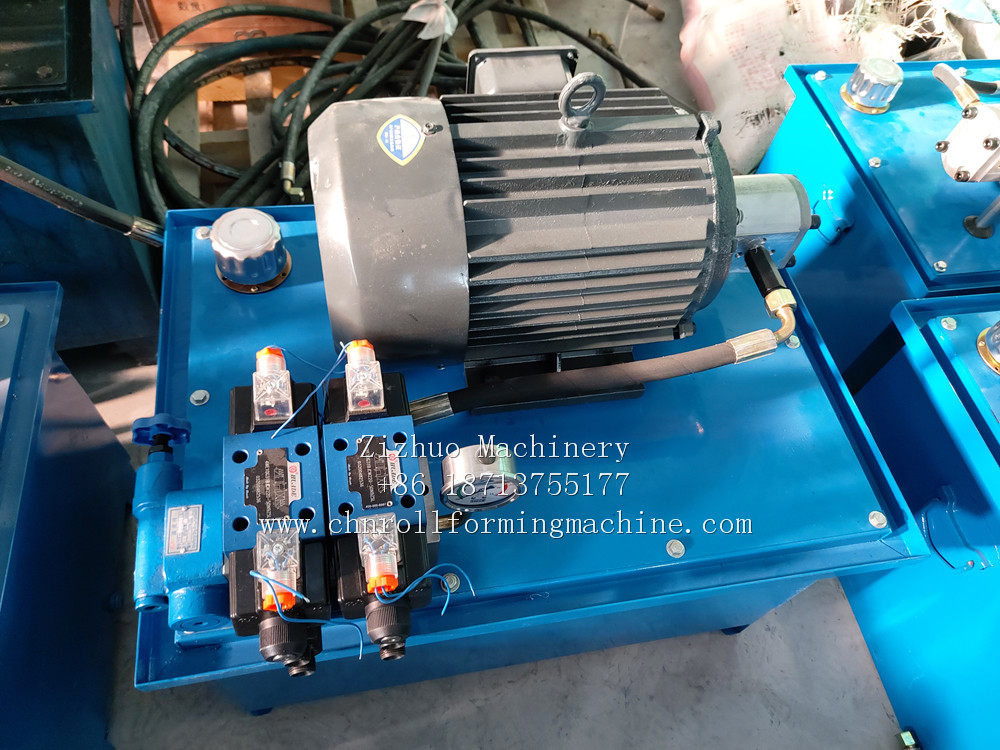

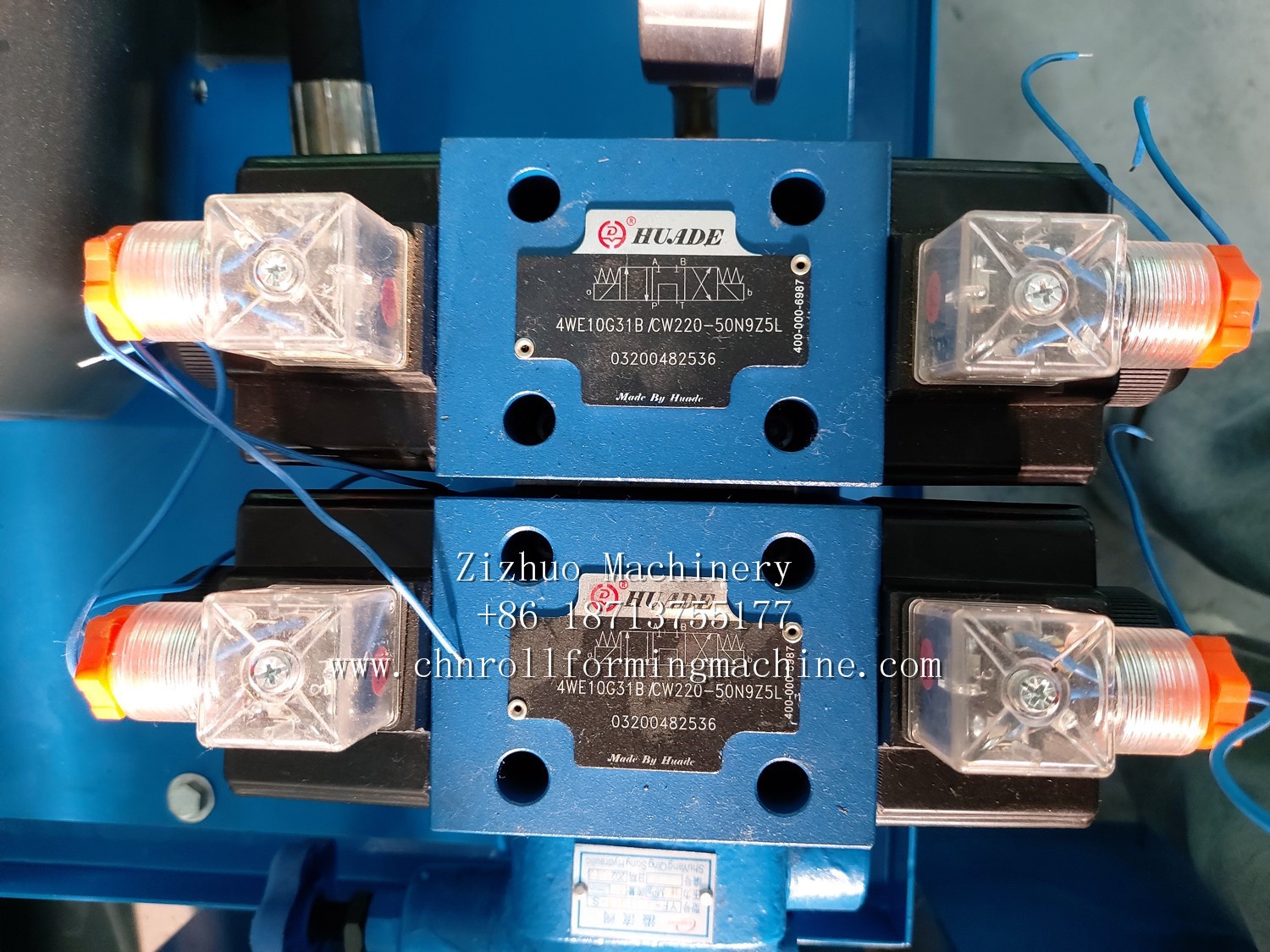

We use international standard hydraulic system, double hydraulic valves, valves is from Chinese famous brand(Huade).
All shafts solid, machine weight around 5.5 ton.
Whole set rollers keep the product beautiful and neat.
We accept customer's size and drawing, will make the machine accordingly.
Welcome inquiry.
