Double layer Micro Wave and dibujo plancha cuadro roll forming machine

roll forming machine tile making machine laminas

Inquiry now

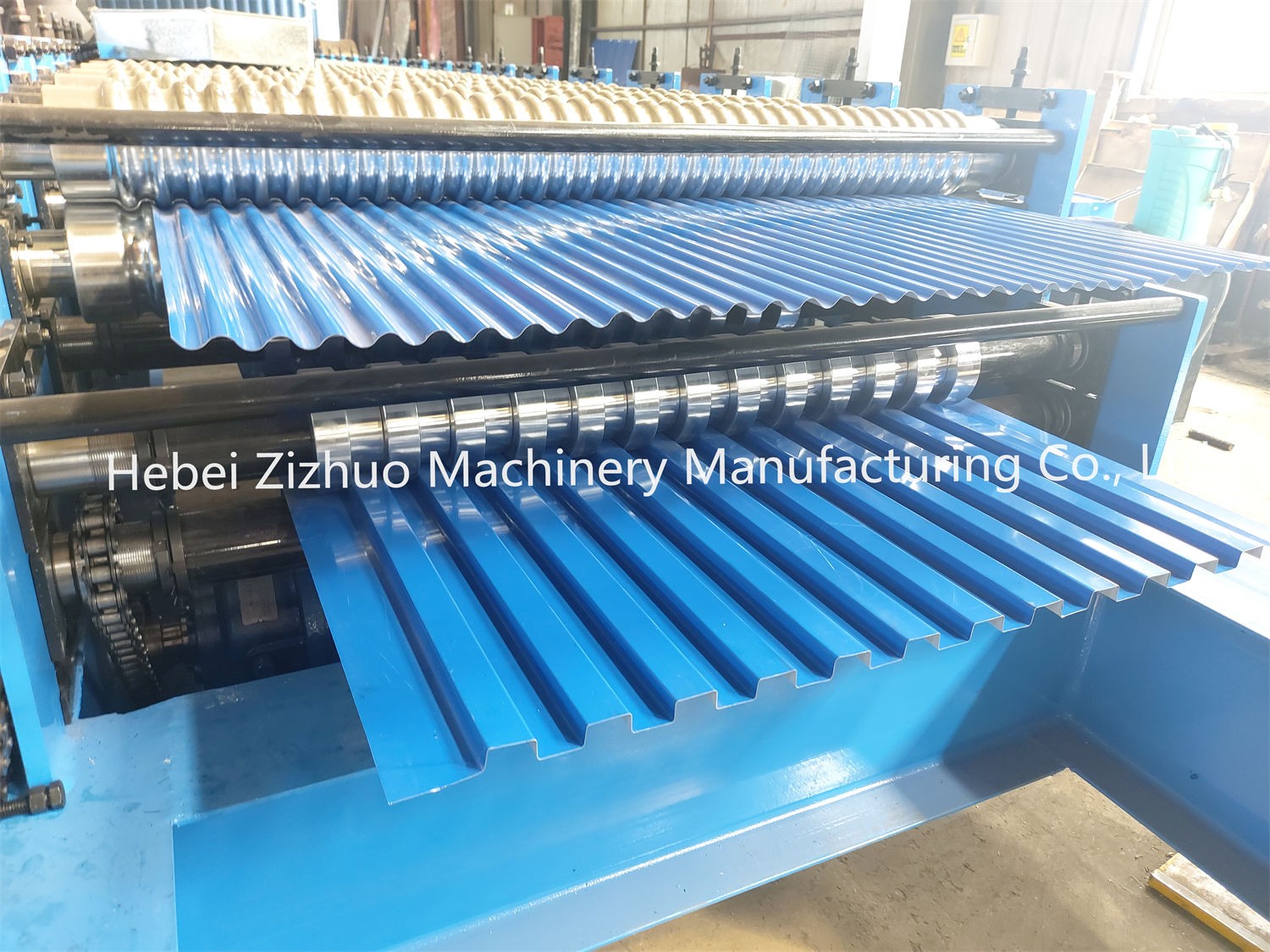

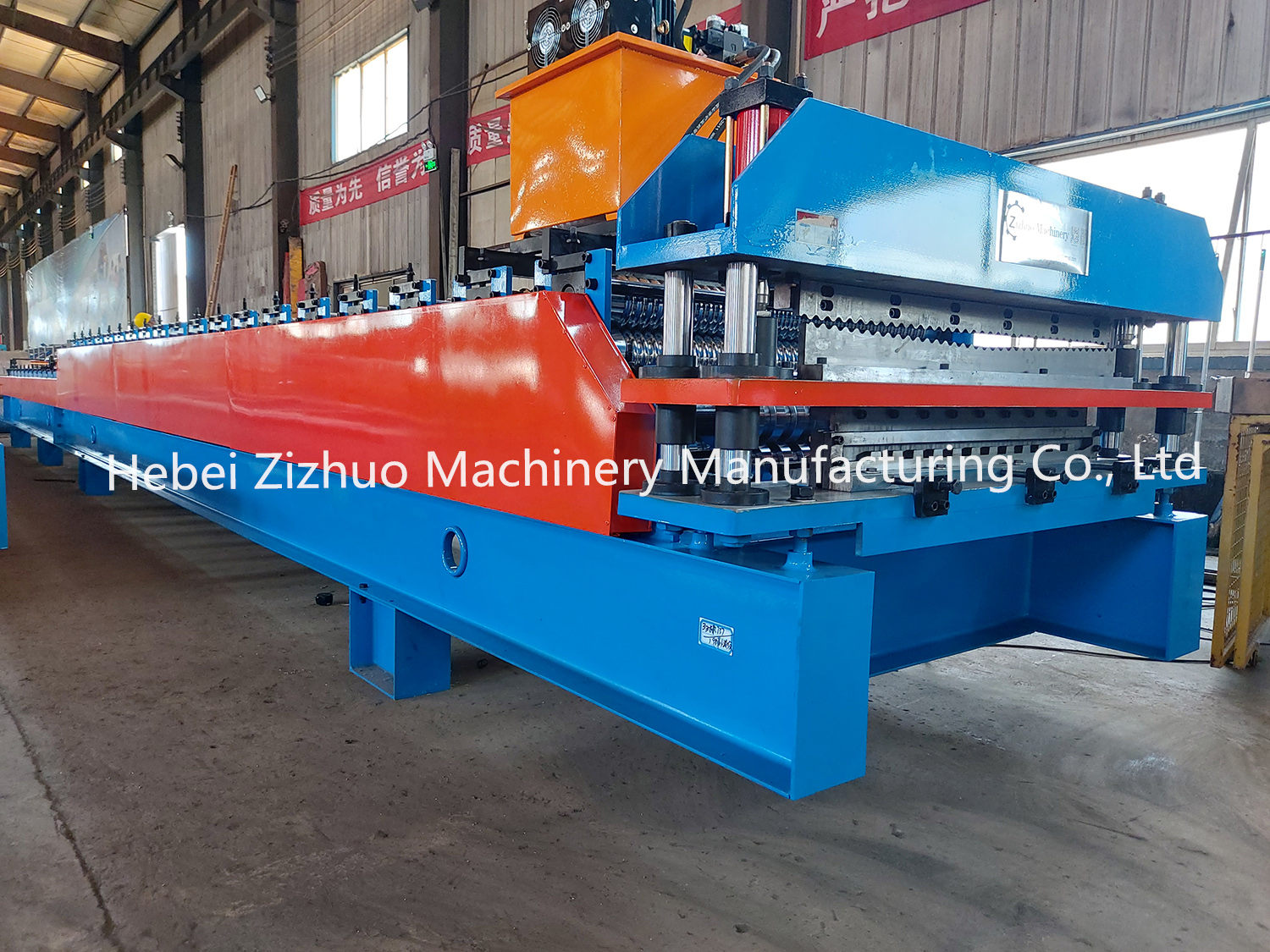

Double layer Micro Wave and dibujo plancha cuadro wall panel roll forming machine

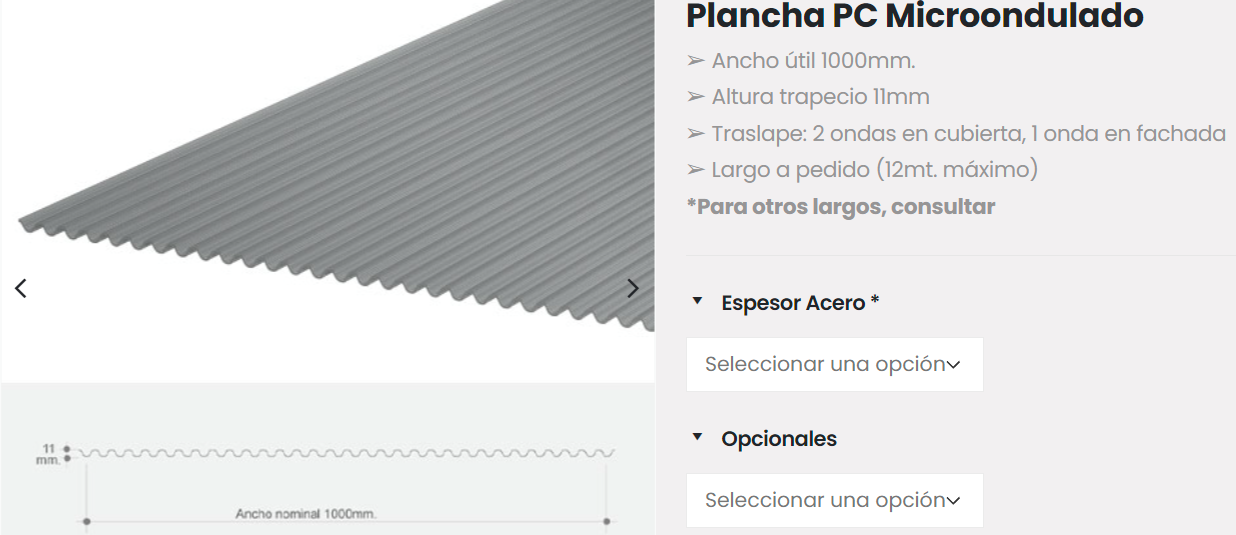

plancha micro ondulada.png

Technical parameters:

No.	Item		Parameter	Remark
1	Suitable material	Type	Color steel, galvanized steel
		Thickness(mm)	0.30-0.6mm	Test material standard 0.45mm
		Yield strength (Mpa)	≤300mm
		Width (mm)	About 1220mm
2	Forming speed		Tile: 1-4m/min Trapezoidal sheet 15-20 m/min	Not include cutting time
3	Motor of forming system (kw)		7.5kw	Depends on final design
4	Hydraulic station power(kw)		5.5kw	Depends on final design
5	Voltage requirements		AC380V, 50Hz, 3phase	According to customer’s request
6	Shaft diameter		70mm
7	Roller material		45# steel	heat treatment 58-62 degree
8	Drive method		1.0 inch chain
9	Machine structure body		350mm H beam
10	PLC system		Delta digital touch screen PLC	Delta
11	Roller station		20/26 rows
12	Machine weight		About 10 tonnes
13	Machine size		About 9.51.581.75m
