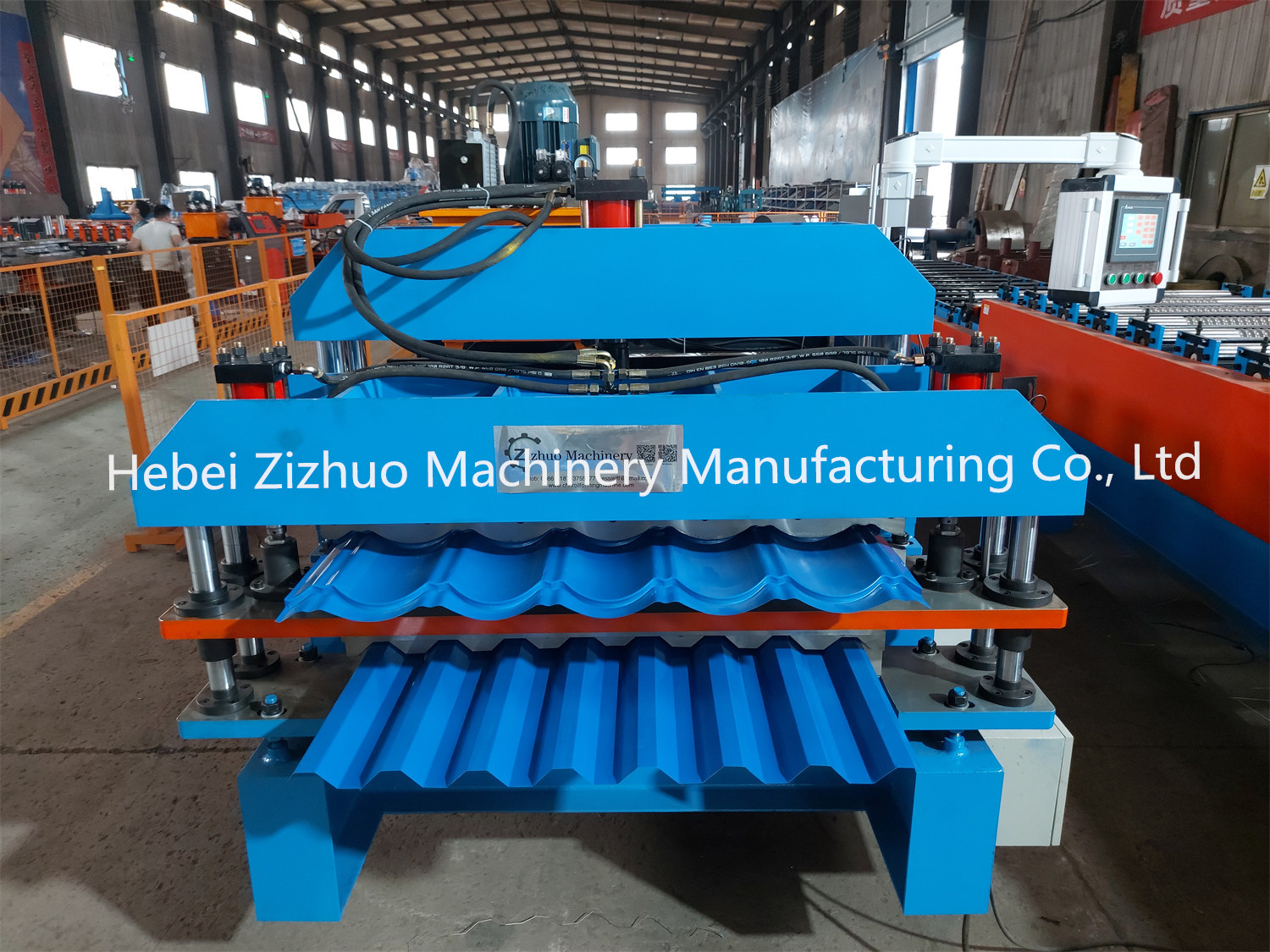

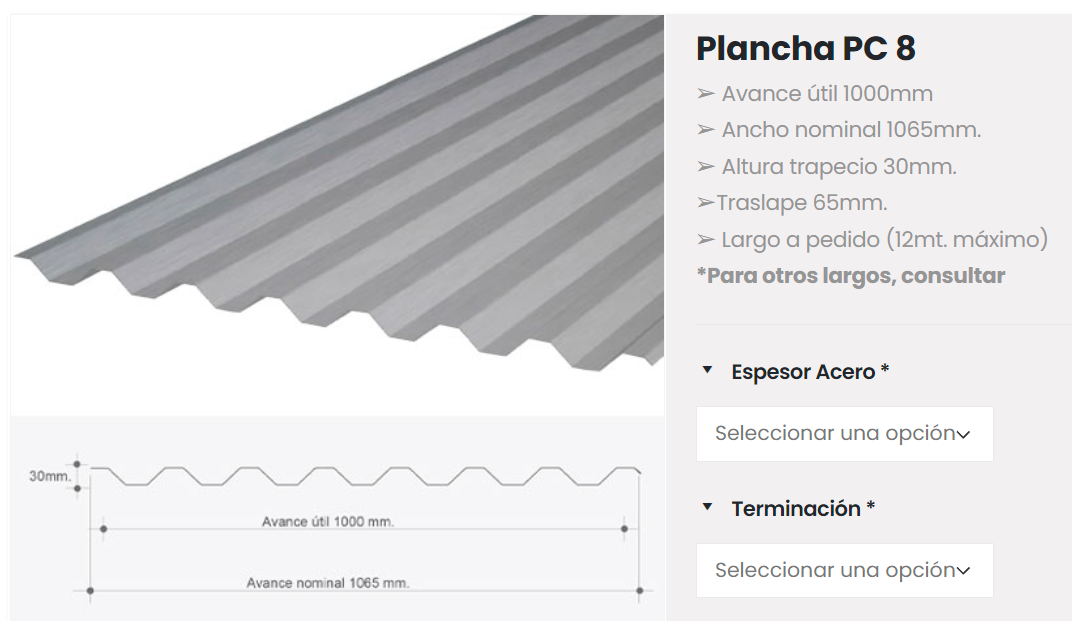

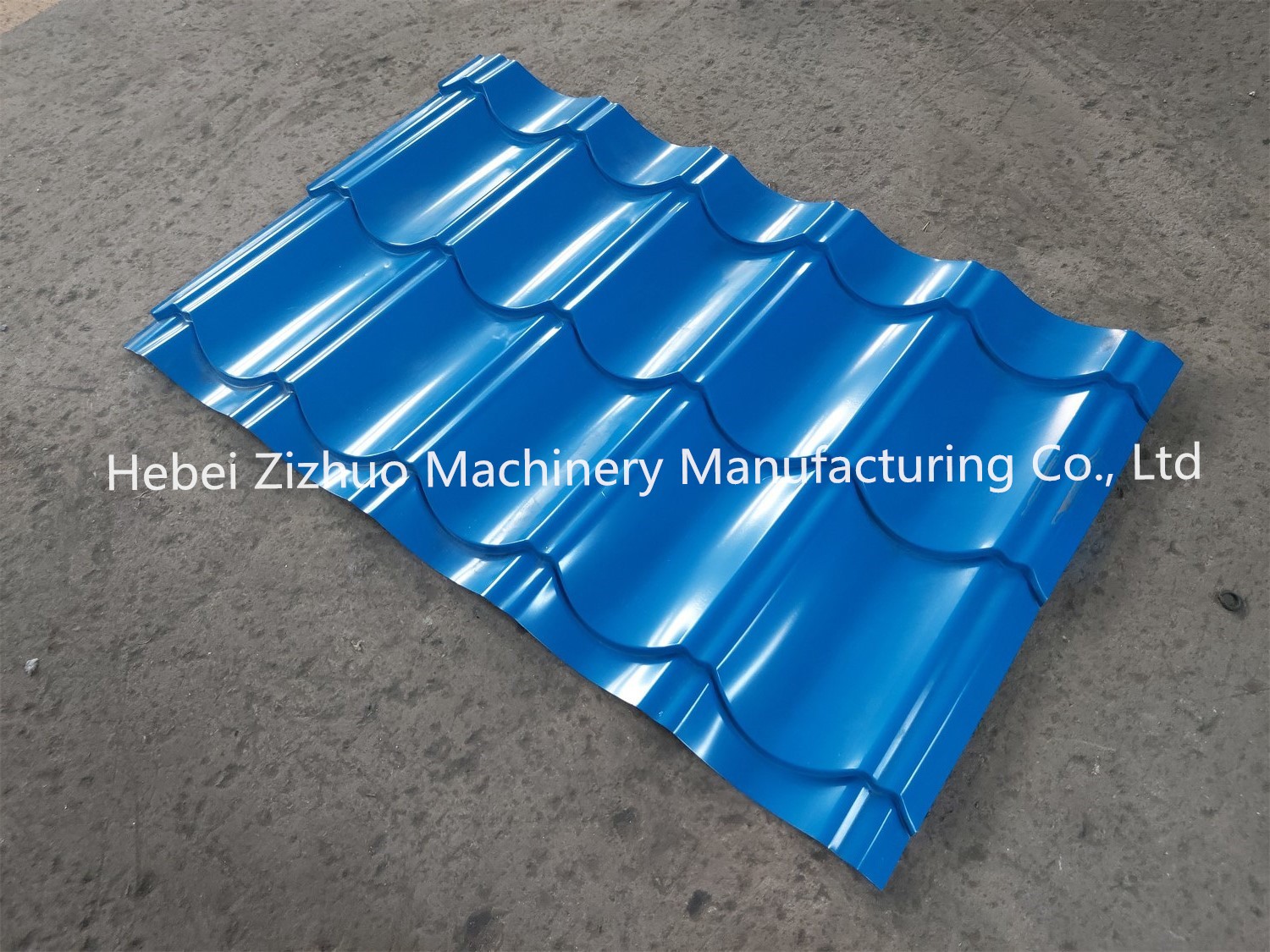

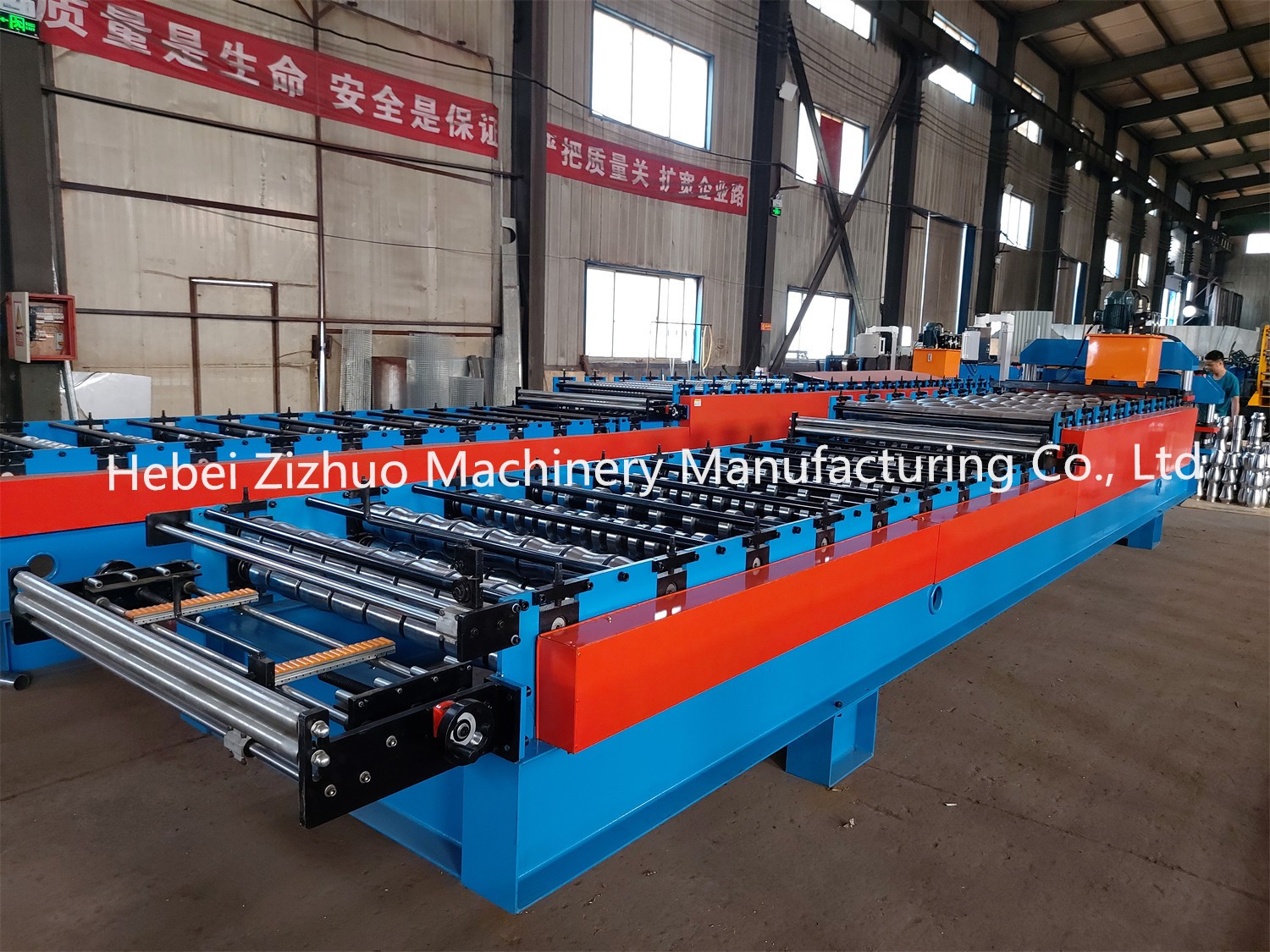

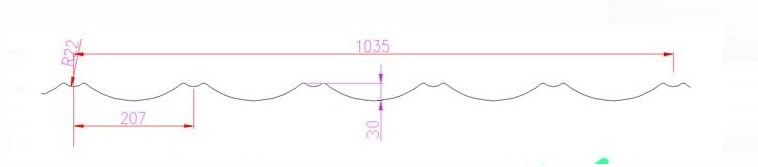

Double layer Mectoppo 1035 and plancha 8 Roofing Sheet Roll Forming Machine
Technical parameters:
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, galvanized steel | |
Thickness(mm) | 0.30-0.6mm | Test material standard 0.45mm | ||
Yield strength (Mpa) | ≤300mm | |||
Width (mm) | About 1220mm | |||
2 | Forming speed | Tile: 1-4m/min Trapezoidal sheet 15-20 m/min | Not include cutting time | |
3 | Motor of forming system (kw) | 7.5kw | Depends on final design | |

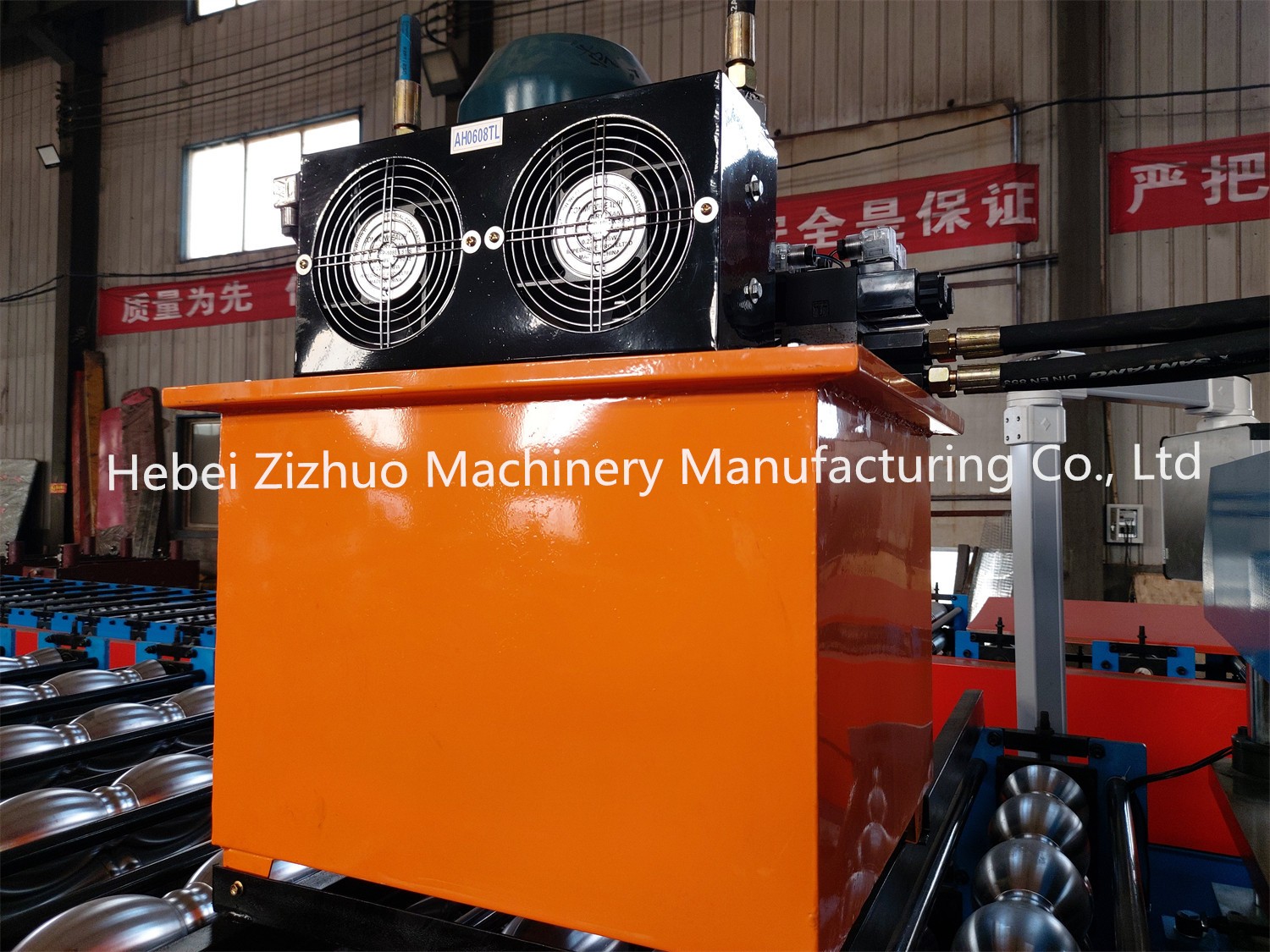

4 | Hydraulic station power(kw) | 5.5kw | Depends on final design | |
5 | Voltage requirements | AC380V, 50Hz, 3phase | According to customer’s request | |
6 | Shaft diameter | 70mm | ||
7 | Roller material | 45# steel | heat treatment 58-62 degree | |
8 | Drive method | 1.0 inch chain | ||
9 | Machine structure body | 350mm H beam | ||

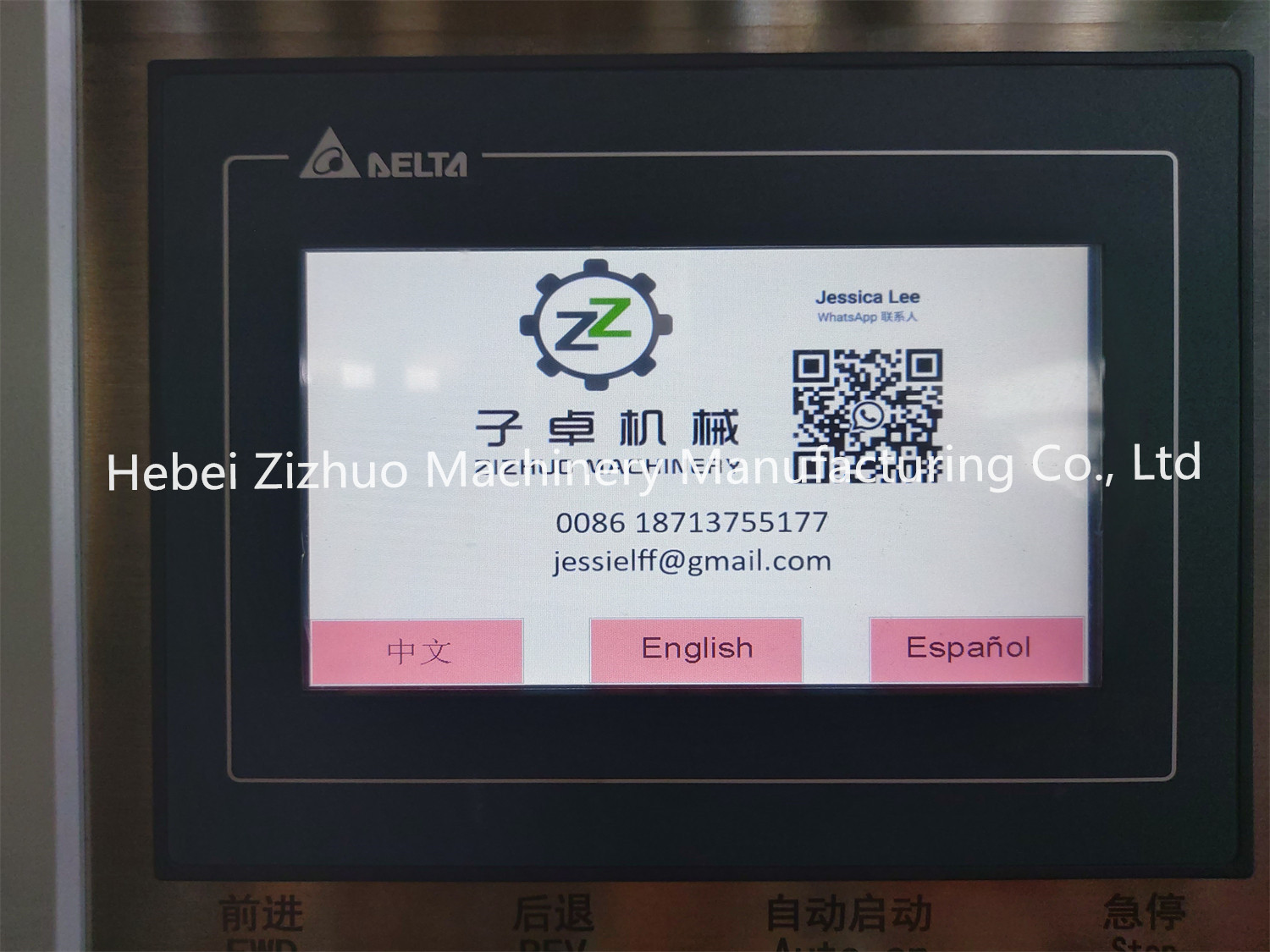

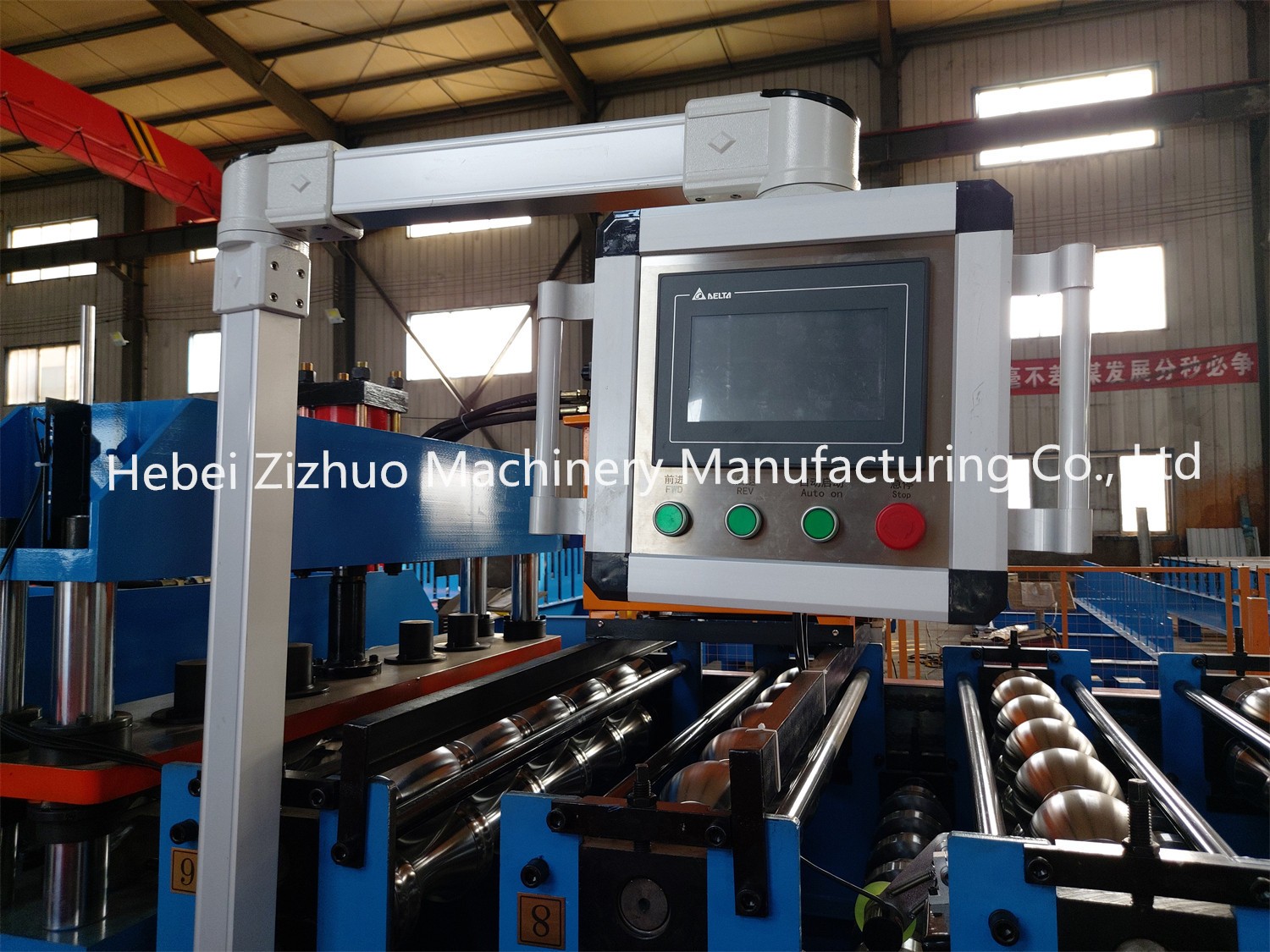

10 | PLC system | Delta digital touch screen PLC | Delta | |
11 | Roller station | 9-18 rows | ||
12 | Machine weight | About 8.6 tonnes | ||
13 | Machine size | About 9.5*1.58*1.75m | ||
Process Flow Chart
Decoiler --- guiding system --- roll forming --- cut to length --- product to supporting table
