Basic Info.
8455221000
After-sales Service
20 Year
Warranty
1 Year
Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Hydraulic Pressure
Color
as Customer′s Request
Roller Material
#45 Steel with Heat Treatment
Body Frame
350h Beam
Wall Plate
16mm
Machine Weight
8500kg
Voltage
220V-460V
Shaft
70mm Solid
Transport Package
Nacked
Specification
8.5*1.5*1.85m
Trademark
zz
Origin
China
HS Code
Production Capacity
100sets/Year
Packaging & Delivery
Package size per unit product
8500.00cm * 1650.00cm * 1850.00cm
Gross weight per unit product
8000.000kg
Product Description

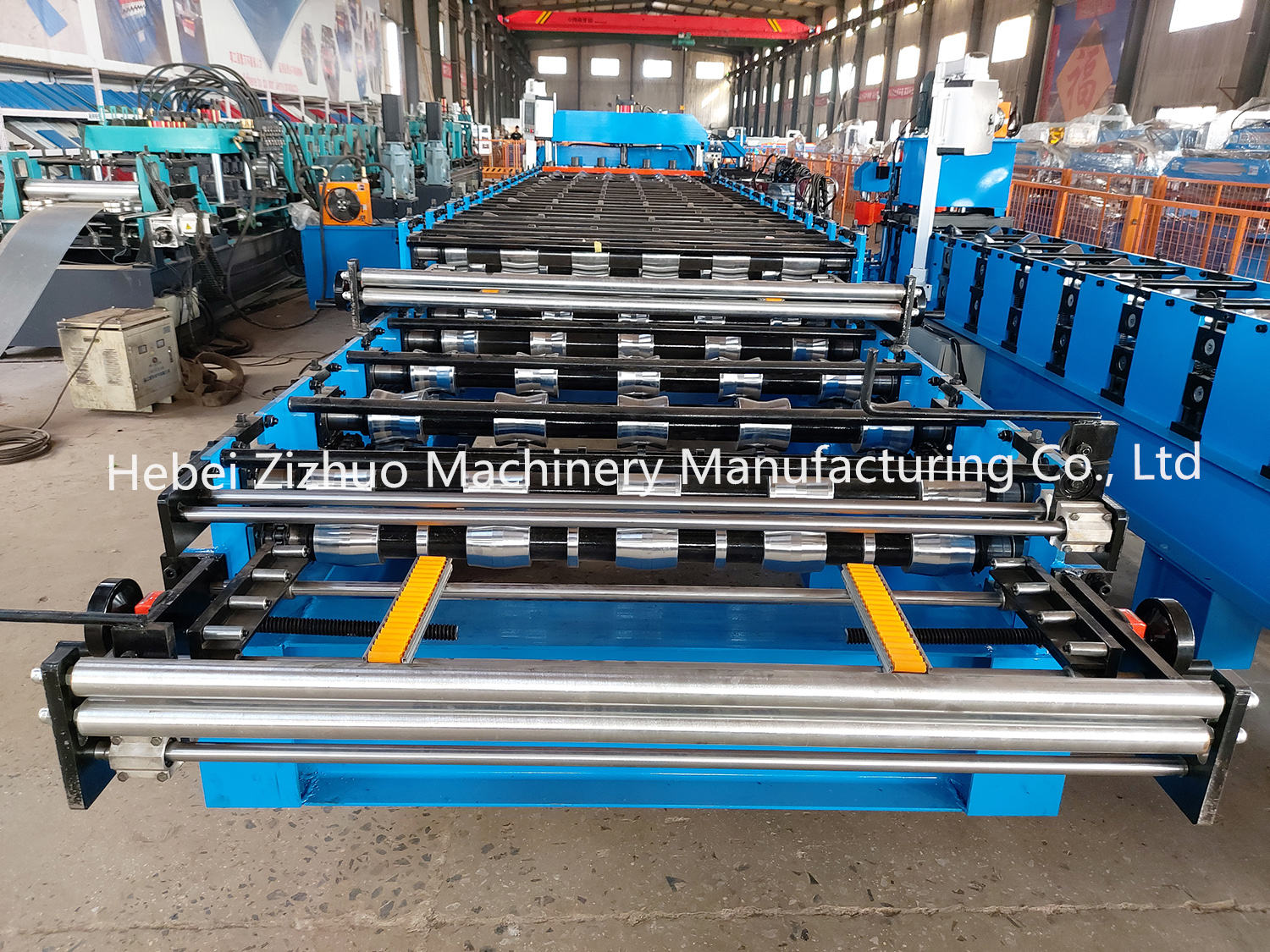

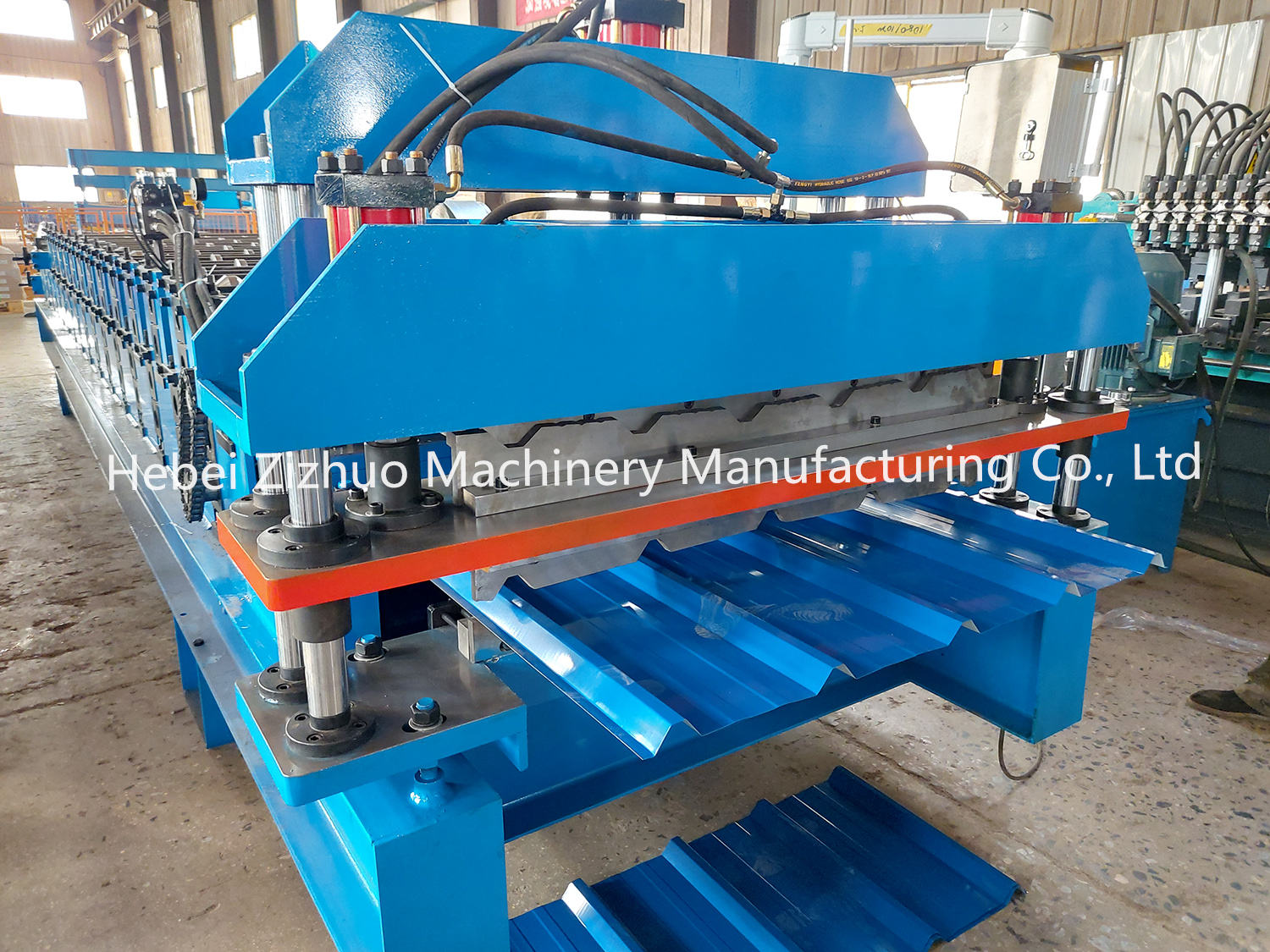

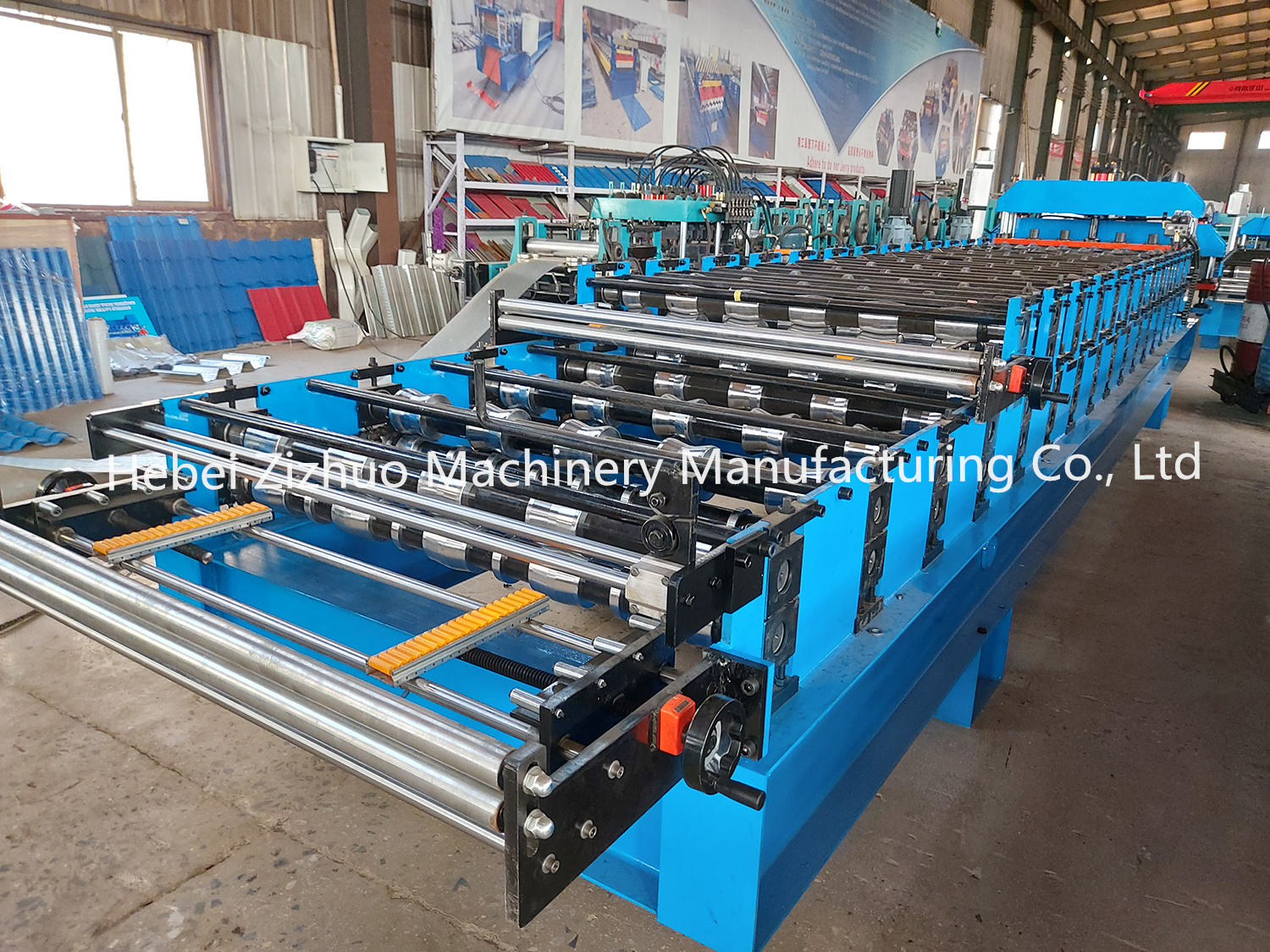

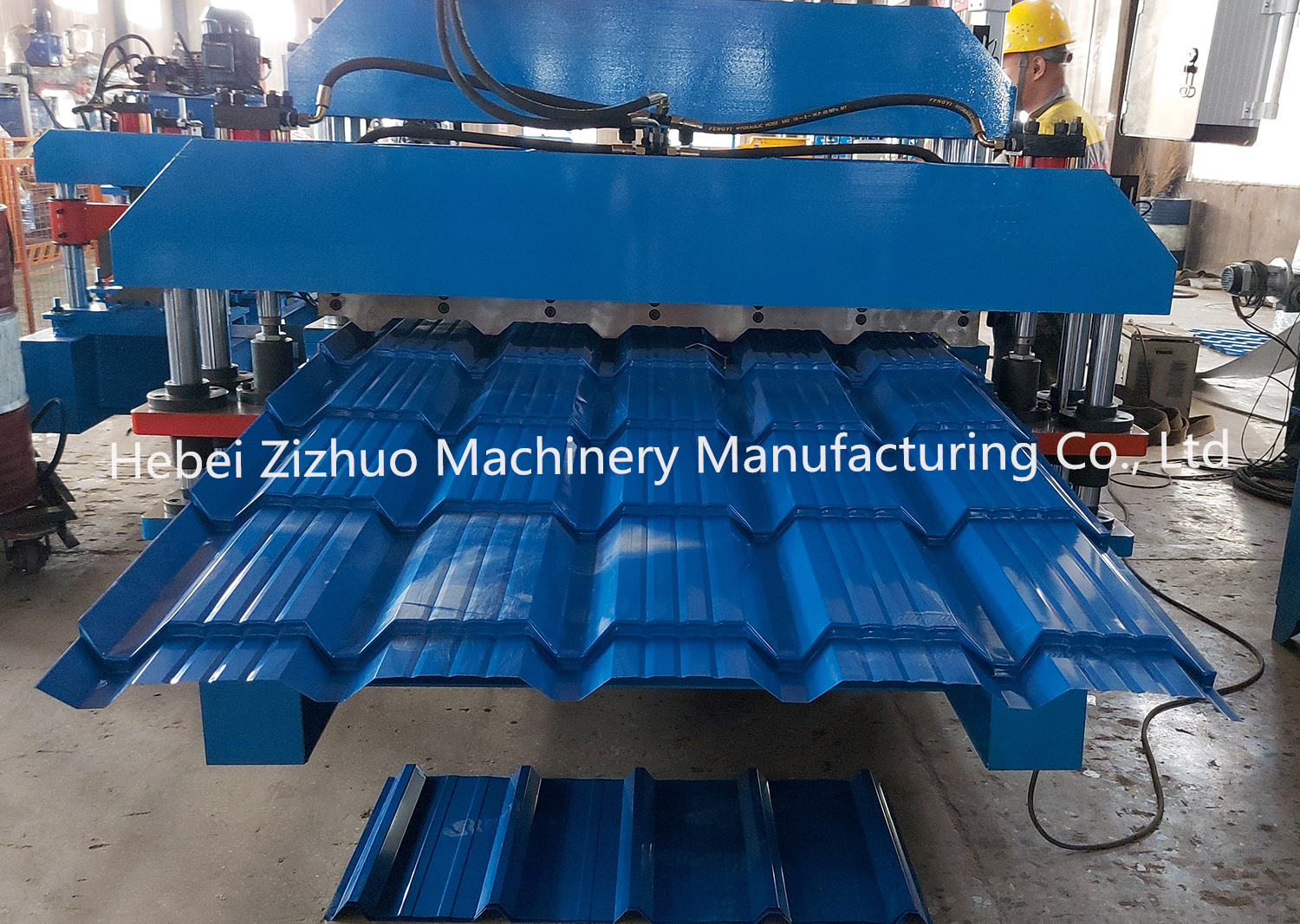

Double Layer Decking Corrugated and Trapezoidal Roofing Sheet Cold Roll Forming IBR Box Profile Tr4 Tr5 Pv4 Pv6 Steel Building Material Machine Factory Price
| No. | Item | Parameter | Remark | |
| 1 | Suitable material | Type | Color steel, galvanized steel | |
| Thickness(mm) | 0.35-0.7mm | Test material standard 0.45mm | ||
| Yield strength (Mpa) | ≤300mm | |||
| Width (mm) | About 1220mm | |||
| 2 | Forming speed | About 10-15 m/m | Not include cutting time | |
| 3 | Motor of forming system (kw) | 5.5kw | Depends on final design | |
| 4 | Hydraulic station power(kw) | 4kw | Depends on final design | |
| 5 | Voltage requirements | AC380V, 50Hz, 3phase | According to the customer's request | |
| 6 | Roller material | #45 steel with heat treatment 58-62 degrees | ||
| 7 | Shaft diameter | 70mm solid | ||
| 8 | Control system | PLC with touch screen | Delta brand | |
