Technical parameters:
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, galvanized steel, Aluzinc | |
Thickness(mm) | 0.35-0.8mm | Test material standard 0.45mm | ||
Yield strength (Mpa) | ≤300mm | |||
Width (mm) | About 1250mm | |||
2 | Forming speed | About 10-15 m/m | Not include cutting time | |
3 | Motor of forming system (kw) | 5.5kw | Depends on final design | |
4 | Motor brand | Lichao | Made in China | |
5 | Hydraulic station power(kw) | 4kw | Depends on final design | |
6 | Voltage requirements | AC380V, 50Hz, 3phase | According to customer’s request | |
7 | Diameter of shaft | 70mm | Solid shaft | |

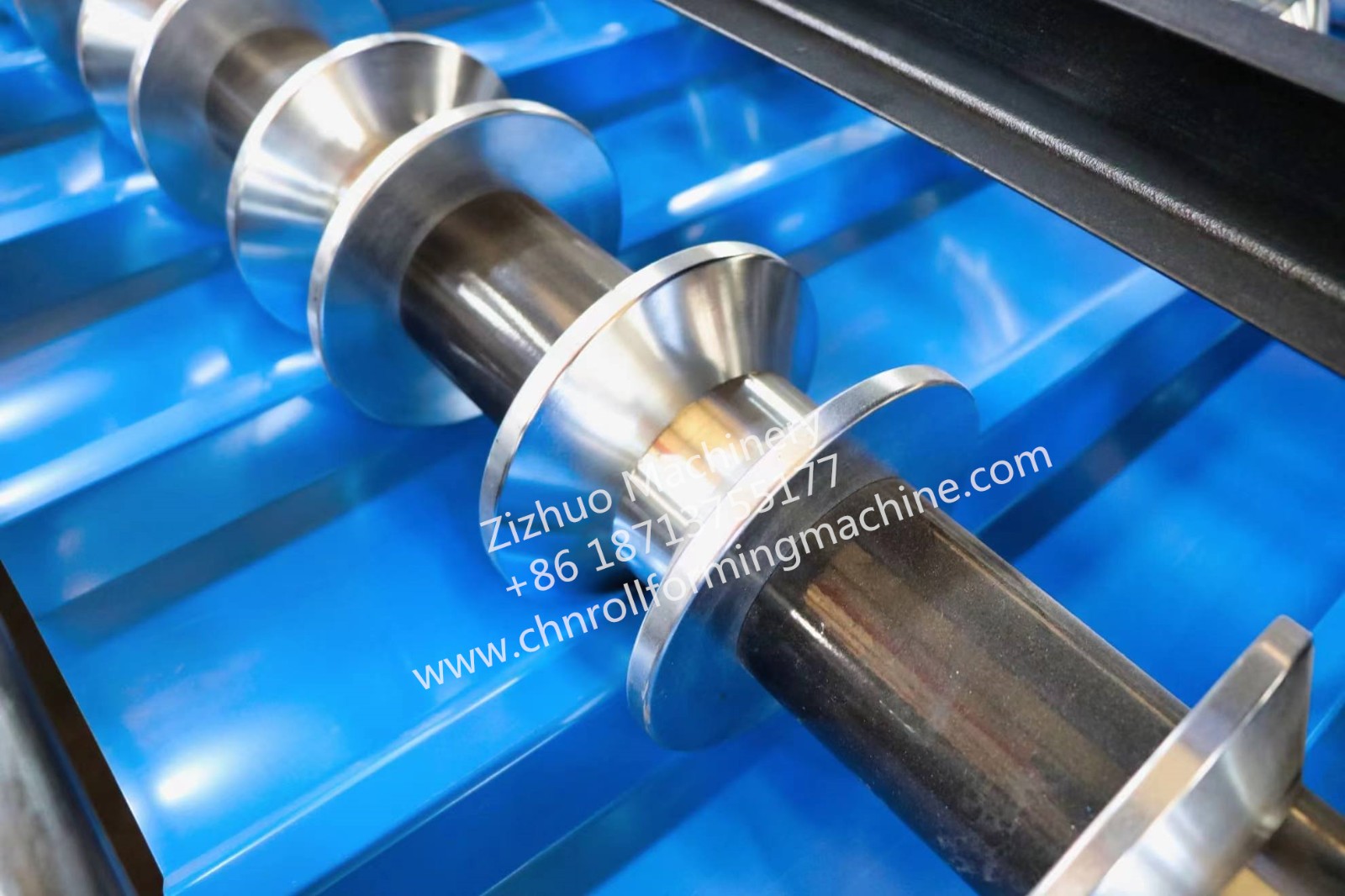

8 | Roller material | #45 steel with chromed | 58-62 degree heat treatment | |
9 | Weight of the machine | About 5.0 ton | ||
10 | PLC control system | Siemens | ||
11 | HMI | Siemens | ||
12 | Size of the machine | 9.5*1.55*1.48m | ||
13 | Roller station | 18-20 rows | ||
