Technical parameters:
No. | Item | Parameter | Remark | |
1 | Suitable material | Type | Color steel, glavanized steel | Q235b galvanized plate |
Thickness(mm) | 0.8-1.2mm | |||
Yield strength (Mpa) | ≤300mm | Test material standard 0.8mm | ||
Width (mm) | About 1219mm | |||
2 | Forming speed | Trapezoidal sheet 12-18 m/min | Not include cutting time | |
3 | Motor of forming system (kw) | 15kw+15kw | Delta | |

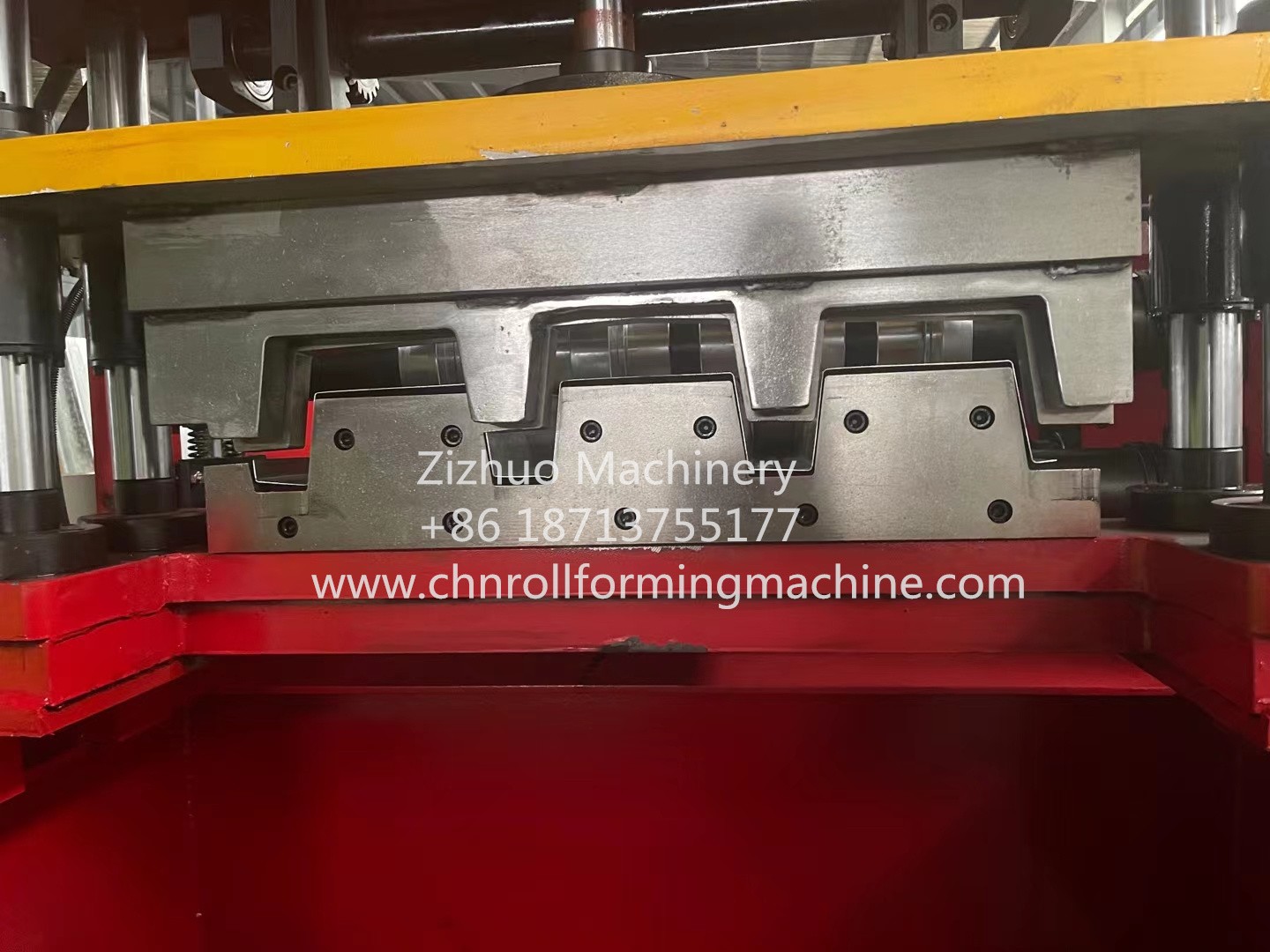

4 | Cutter blade material | Cr12 | Heat treatment 58-62 degrees | |
5 | Voltage requirements | AC380V, 50Hz, 3phase | According to customer’s request | |
6 | Shaft diameter | 70mm | ||
7 | Loops | 4mm thickness | Seamless steel pipe electroplating is delayed to ensure the accuracy of the roller fixing | |
8 | Roller material | 45# steel | Hard chrome plating on the surface 0.05mm | |
9 | Drive method | 1.5 inch chain | ||
10 | Machine structure body | 450mm H beam | ||
11 | Encoder | Omrom | ||
12 | Roller station | 24-26 rows | ||
13 | Machine weight | About 10 tonnes | ||
14 | Machine size | About 15.5*1.7*1.8m | ||
Process Flow Chart
Decoiler --- guiding system --- roll forming --- cut to length --- product to supporting table

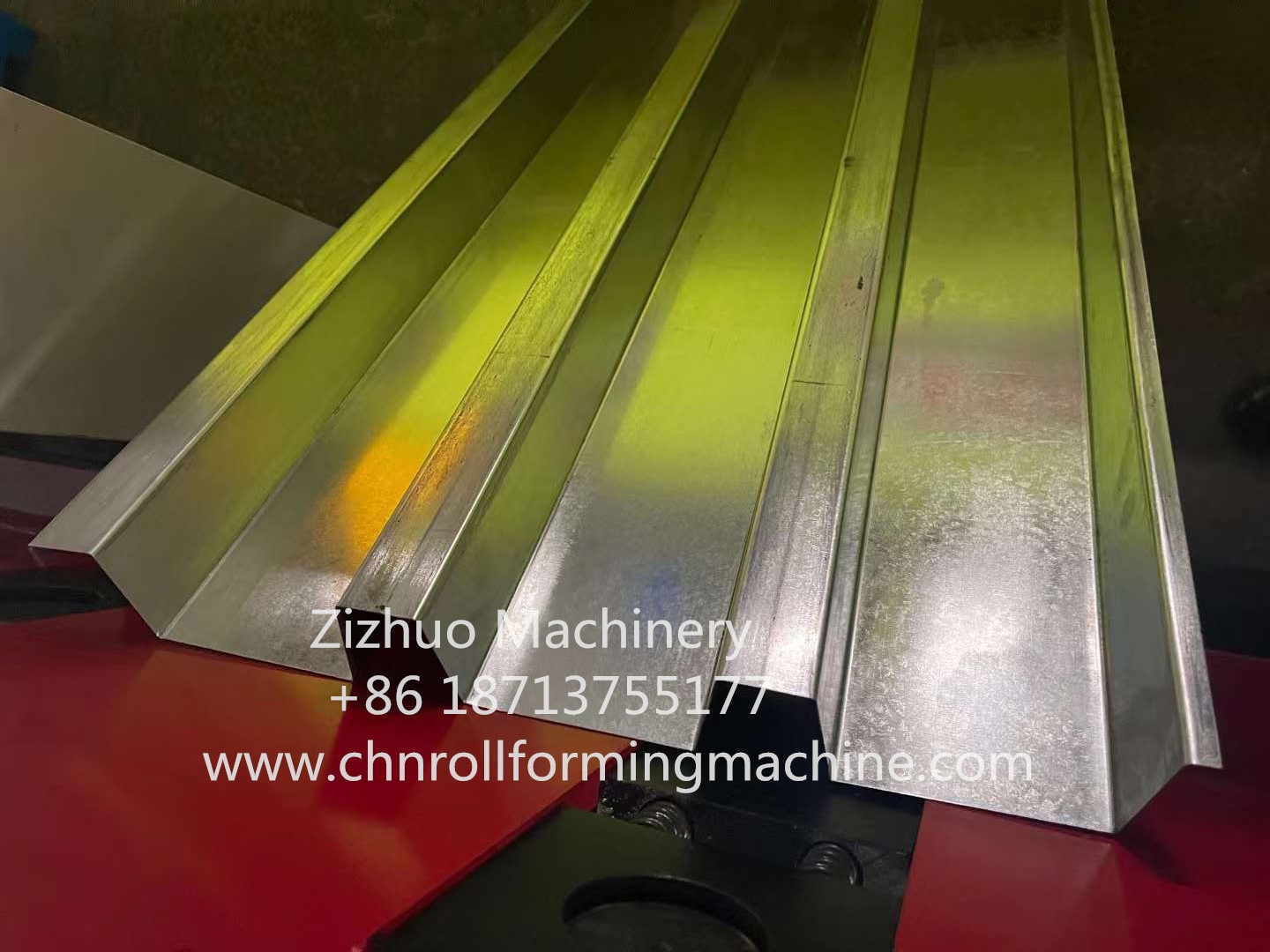

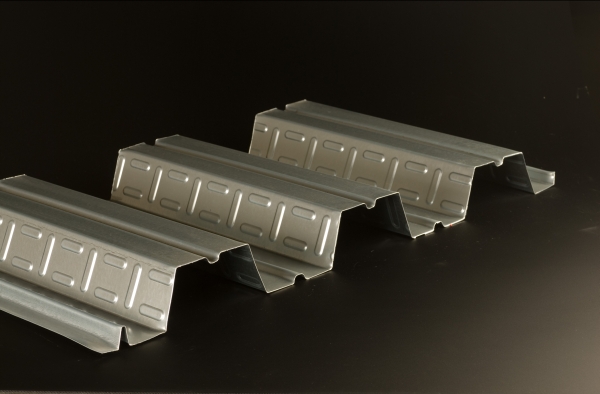

We provide customized metal floor decking roll forming machine according to your own profile drawing.
Welcome inquiry.
