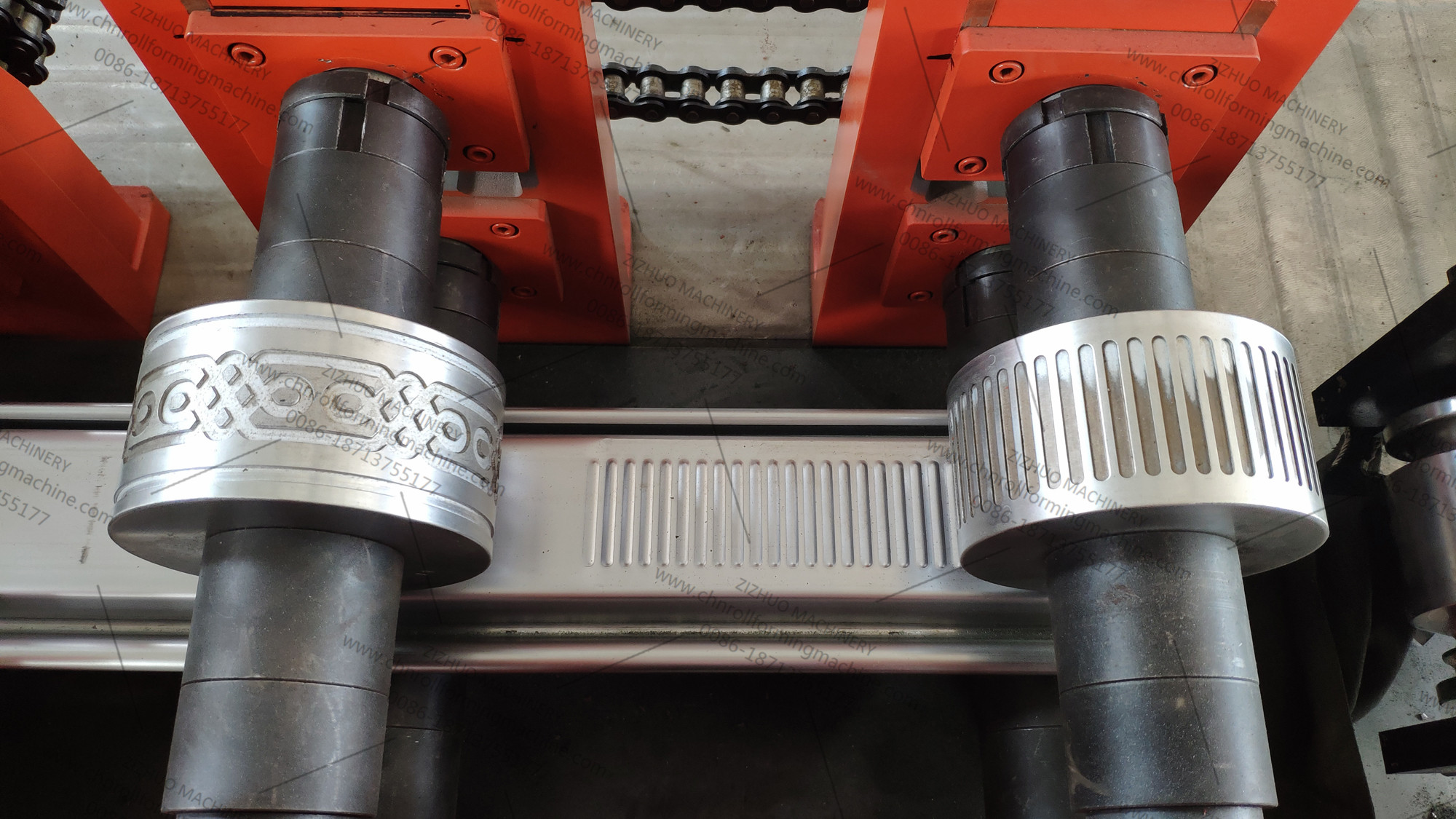

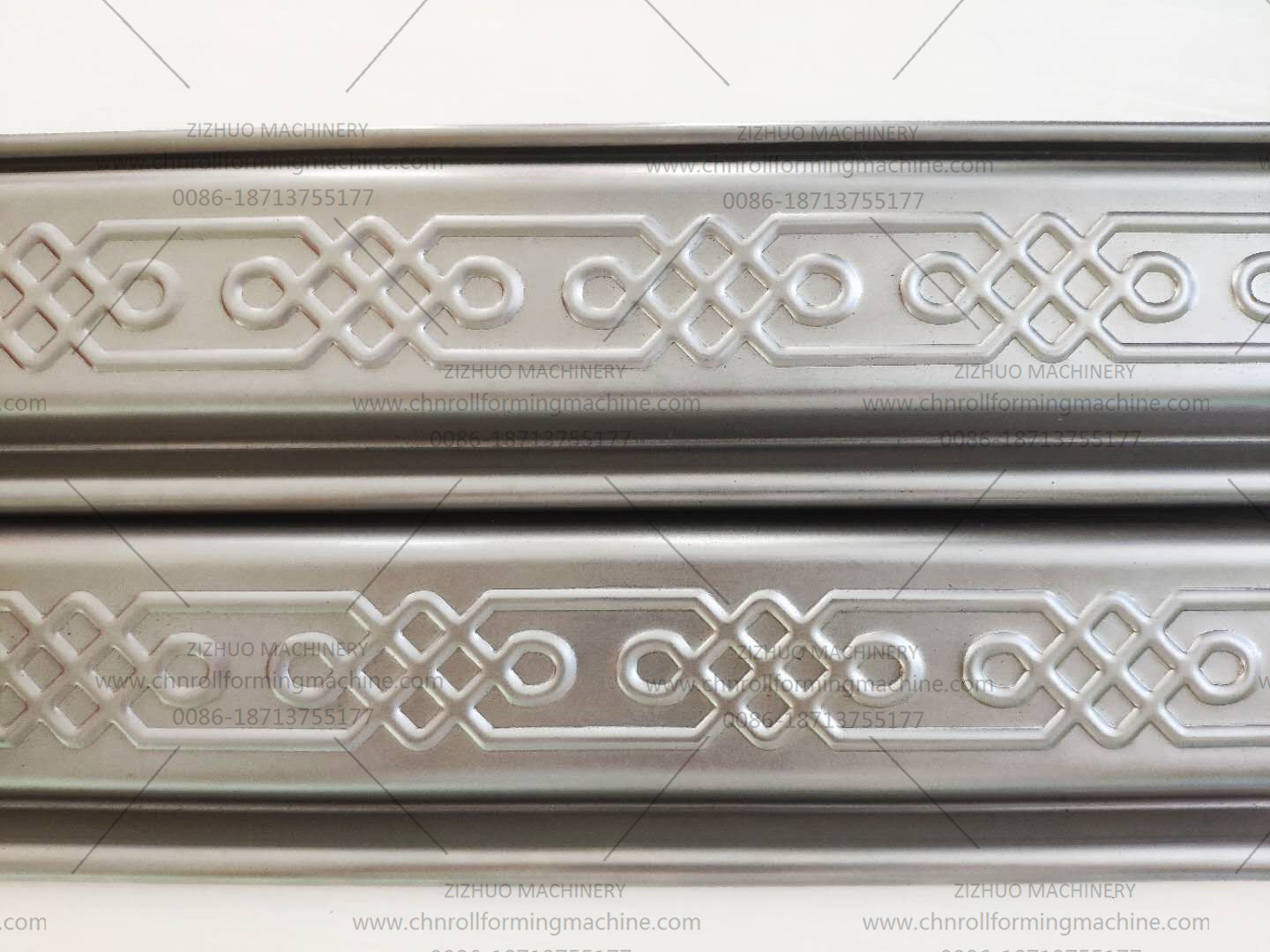

Embossing roll up shutter slat roll forming machine

Parameter

Specification

1

Processing material

Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.

2

Certification

CE / BV / ISO / SGS

3

Voltage

AC 380V 50Hz 3Phases or as per your request.

4

Power

5.5kw main roll forming core + 4kw hydraulic station

5

Processing thickness

0.6-1.2mm

6

Feeding width

According to your profile drawings.

7

Output width

According to your profile drawings.

8

Diameter of shaft

Φ50mm (Solid shafts)

9

Roller stations

12 rows of rollers

10

Machine size

About 5.35m * 1.0m * 1.2m

11

Machine weight

About 2.2 tons

12

Productivity

About 10-12 m/min

13

Roller material

Cr12 mould steel with quenched treatment

14

Cutter material

Cr12 mould steel with quenched treatment

15

Screw

Galvanized national standard

16

Control system

Delta PLC (made inTaiwanprovince of China.)

17

Drive method

Chain transmission

18

Electron component

Schneider

19

Encoder

Omron
